Home > Products > Blister Packing Machine
Blister Packing Machine

DPP-400 Blister Packing Machine

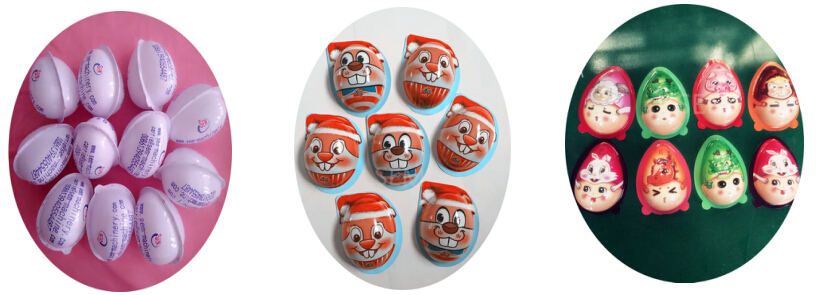

Blister packing machine is suitable for packaging eye-mark,  cream, cosmetics, food, chemical products, such as single-dose liquid syrup,olive oil, ketchup, jam, butter, chocolate sauce, honey, perfume, lotion, cosmetic, essential oil, fertilizer, pesticide, etc. The blister packing machine after automatic plastic ampoule forming , liquid filling, sealing, cutting, the product sample will be finished. The blister packing machine could have easy tear line making and date embossing. OEM/ODM custom design the shape and size of the blister product.It is PLC control , touching screen English Operation. Power supply:according to each country customer requirements. Each machine has CE certificate.

model
DPP-250
Cutting Frequency
10-35 times/min
Packing Film Width
260mm
Max Forming Depth
25mm or Customized
Max Forming Area
250*140mm
Air pressure
0.6-0.8MA
Total Powder Supply(or Customized)
380V 50Hz, 8.5KW
PVC Hard Film
(0.15-0.5)*250mm
PTP Aluminum Film
(0.02-0.035)*250mm
Dialysis Paper
50-100g*250mm
Mould Cooling
Tap Water or Recycling Water
Overail Dimension(L*W*H)
3250*710*1700mm
Machine Weight
1400kg


Application:

It is used for tablet, capsule, pill, honey pill, candy, liquid, paste, disposable syringe in regular and irregular shaped Alu/PVC, Alu/Alu or Paper /Alu in the field of pharmaceutical, health product, foodstuff, cosmetic , medical instrument and etc.


DPP-400 Automatic Blister Packing Machine


Max Forming Depth27mm
Cutting Frequency10-30times/min
Stroke40200mm
Main Power6.5KW
Power Supply380 50Hz
Packing FilmForming Film 0.15-0.5mm*3600mm    Sealing Film0.02-0.08*3600mm
Machine Weight2000kgs
Machine Size4000*600*1650mm
