Blister Packing Machine

DPP-140 Blister Packing Machine

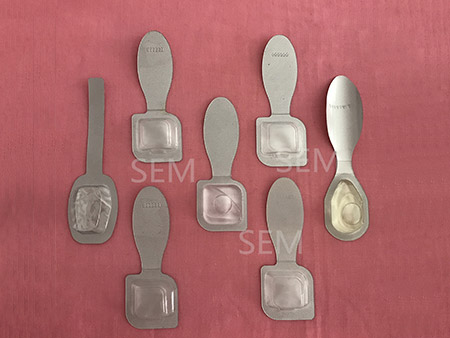

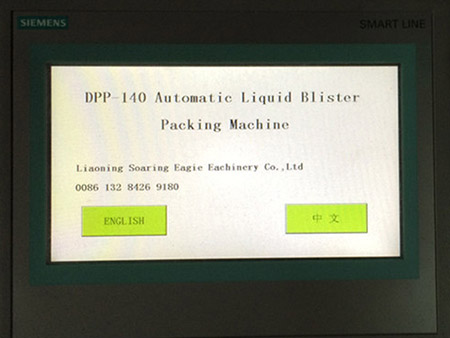

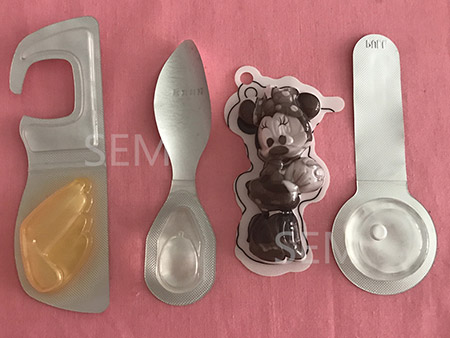

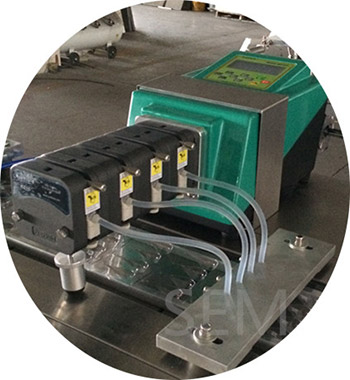

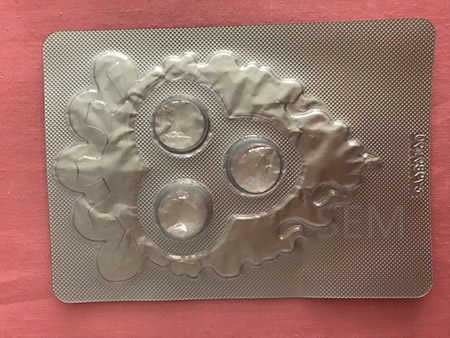

Blister packing machine is suitable for packaging cream,  cosmetics, food, chemical products, such as single-dose liquid syrup,olive oil, ketchup, jam,  butter, chocolate sauce, honey, perfume, lotion, cosmetic, essential oil, fertilizer, pesticide, etc. The blister packing machine after automatic plastic ampoule forming , liquid filling, sealing, cutting, the product sample will be finished. The blister packing machine could have easy tear line making and date embossing. OEM/ODM custom design the shape and size of the blister product.It is PLC control , touching screen English Operation. Power supply:according to each country customer requirements. Each machine has CE certificate.

model
DPP-140
Cutting Frequency
10-35 times/min
Packing Film Width
150mm
Max Forming Depth
25mm or Customized
Max Forming Area
145*110mm
Air pressure
0.6-0.8MA
Total Powder Supply(or Customized)
380V 50Hz, 8.5KW
PVC Hard Film
(0.15-0.5)*250mm
PTP Aluminum Film
(0.02-0.035)*250mm
Dialysis Paper
50-100g*250mm
Mould Cooling
Tap Water or Recycling Water
Overail Dimension(L*W*H)
2315*635*1405mm
Machine Weight
820kg


Application:

It’s suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc.



Max Forming Depth25mm
Cutting Frequency10-30times/min
Stroke50-120mm
Main Power4.5KW
Power Supply220V-380 50Hz
Packing FilmForming Film 0.15-0.5mm*110mm    Sealing Film0.02-0.08*110mm
Machine Weight800kgs
Machine Size2300*560*1600mm

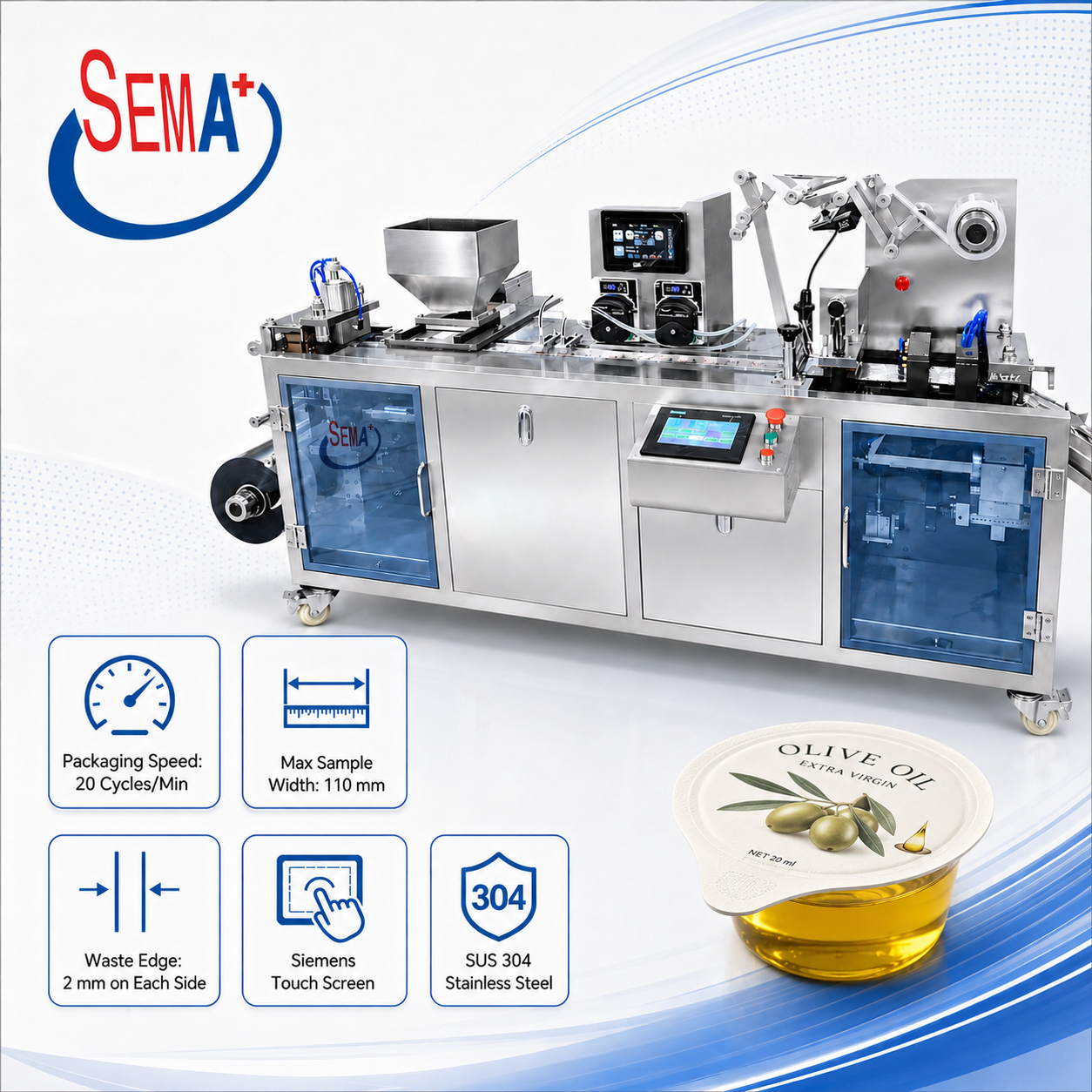

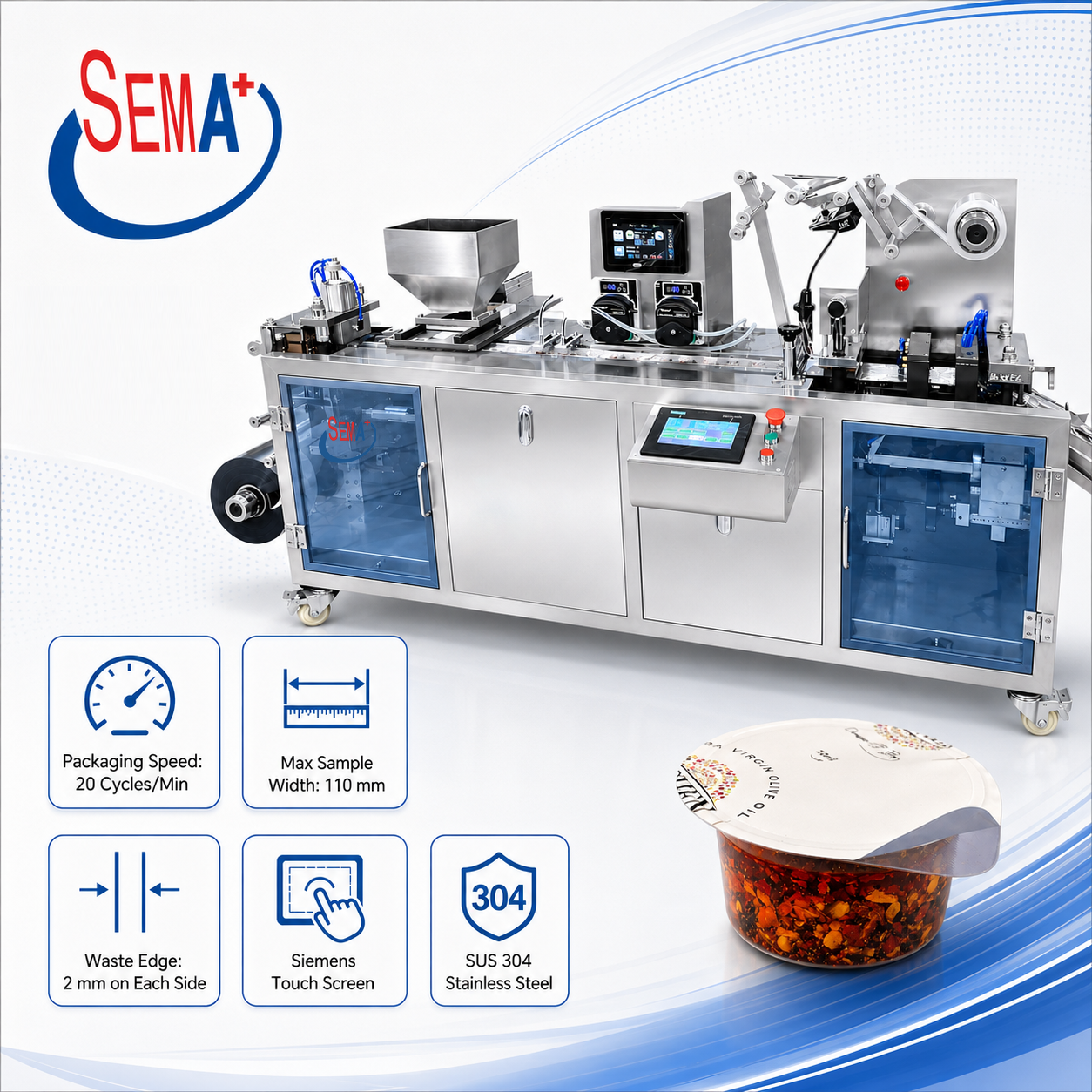

DPP-140 Automatic Blister Packing Machine


DPP-140 Automatic Blister Packing Machine   DPP-140 Automatic Blister Packing Machine

DPP-140 Automatic Blister Packing Machine   DPP-140 Automatic Blister Packing Machine
