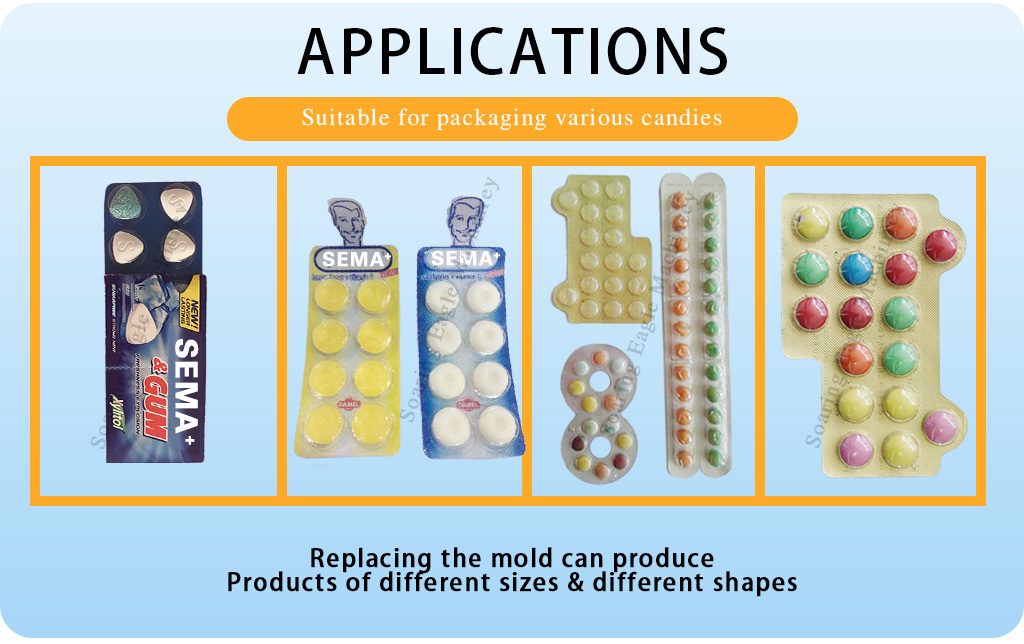

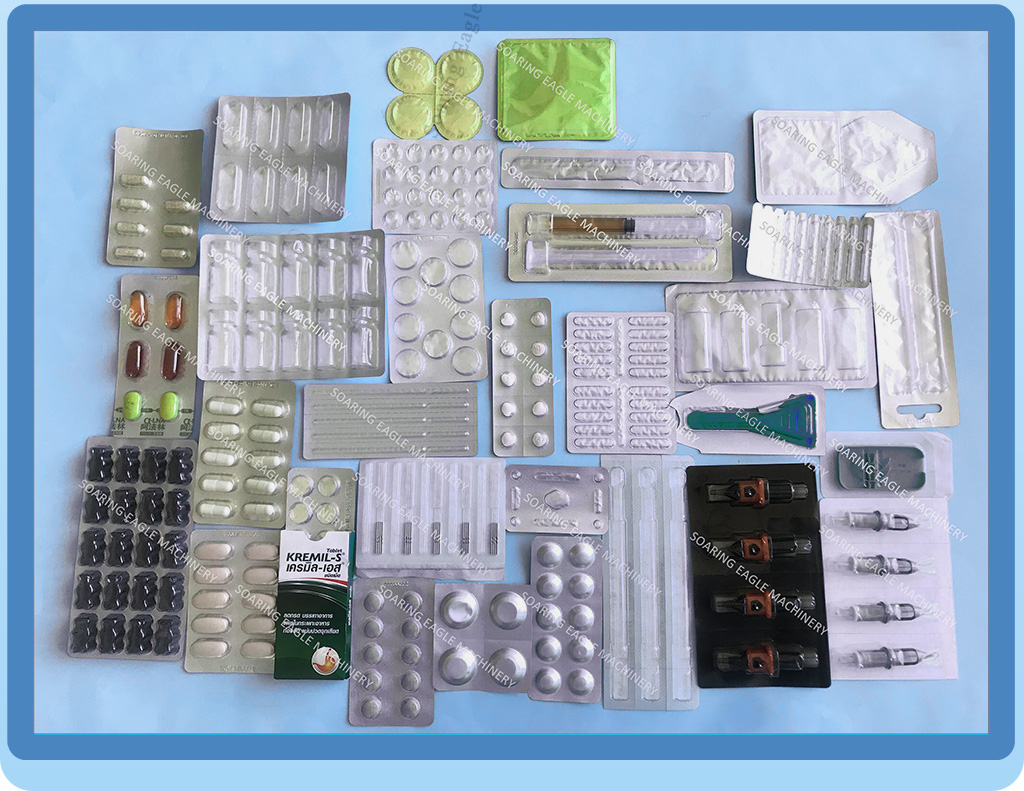

Blister packing machine is suitable for packaging eye-mark, medical, cream, medicine, cosmetics, food, chemical products, such as single-dose liquid syrup,olive oil, ketchup, jam, butter, chocolate sauce, honey, perfume, lotion, cosmetic, essential oil, fertilizer, pesticide, etc.

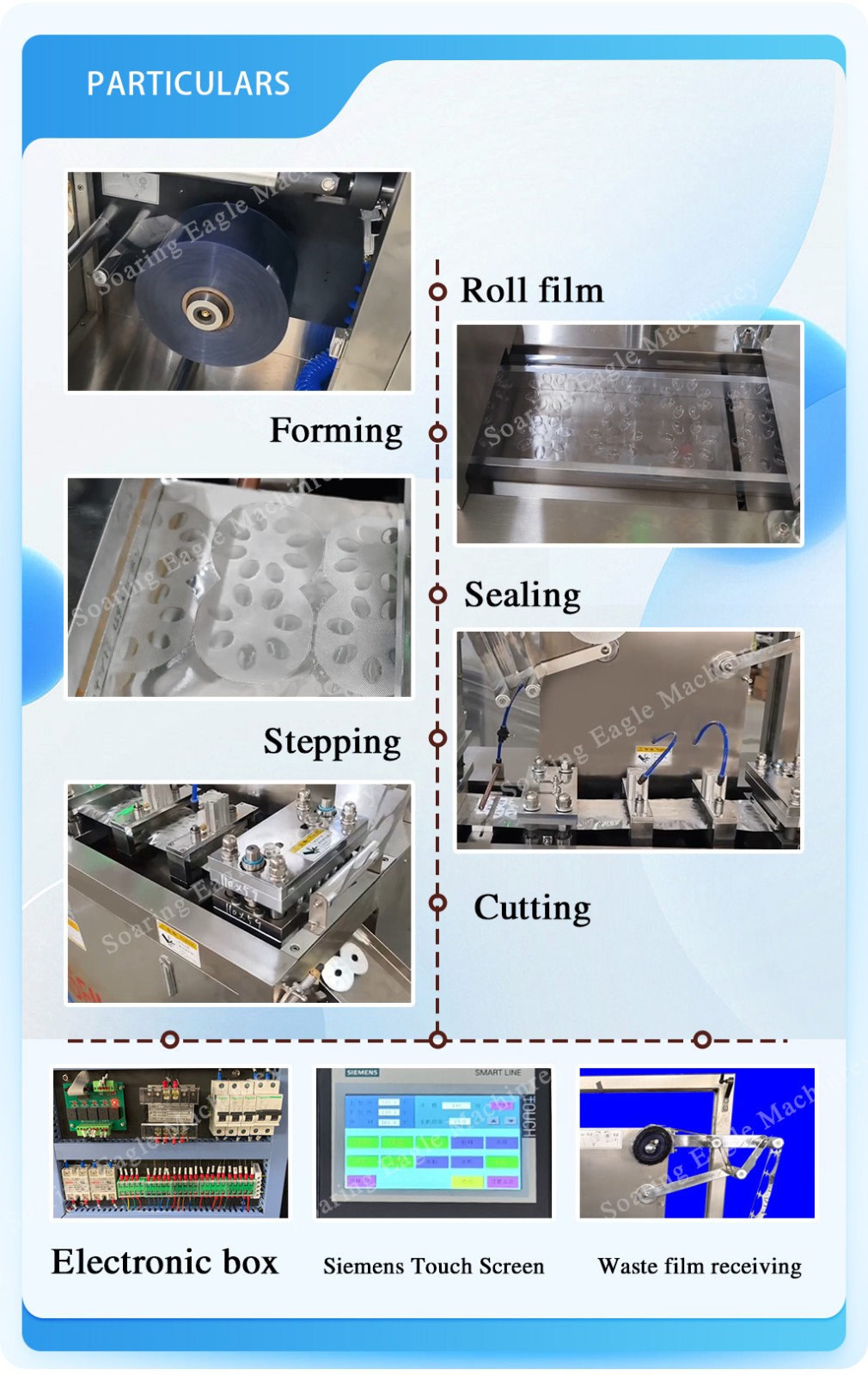

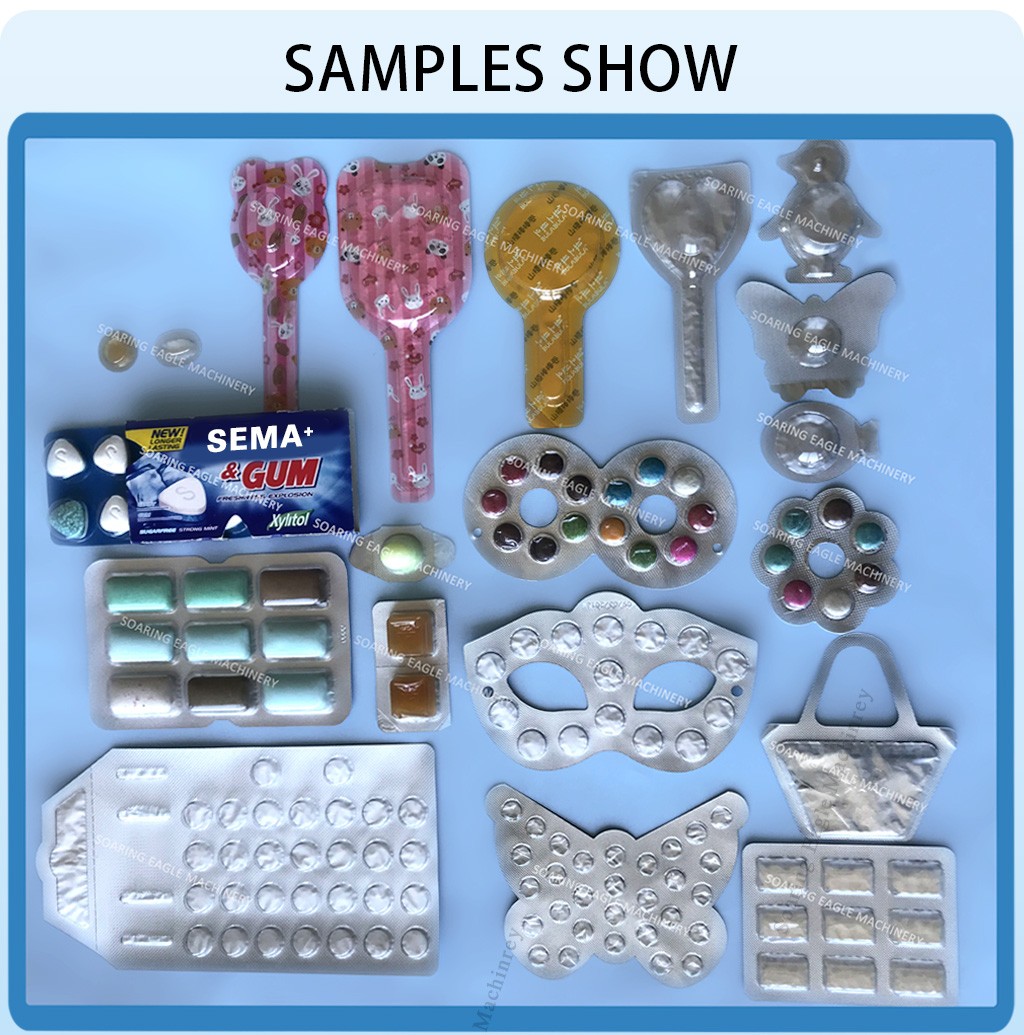

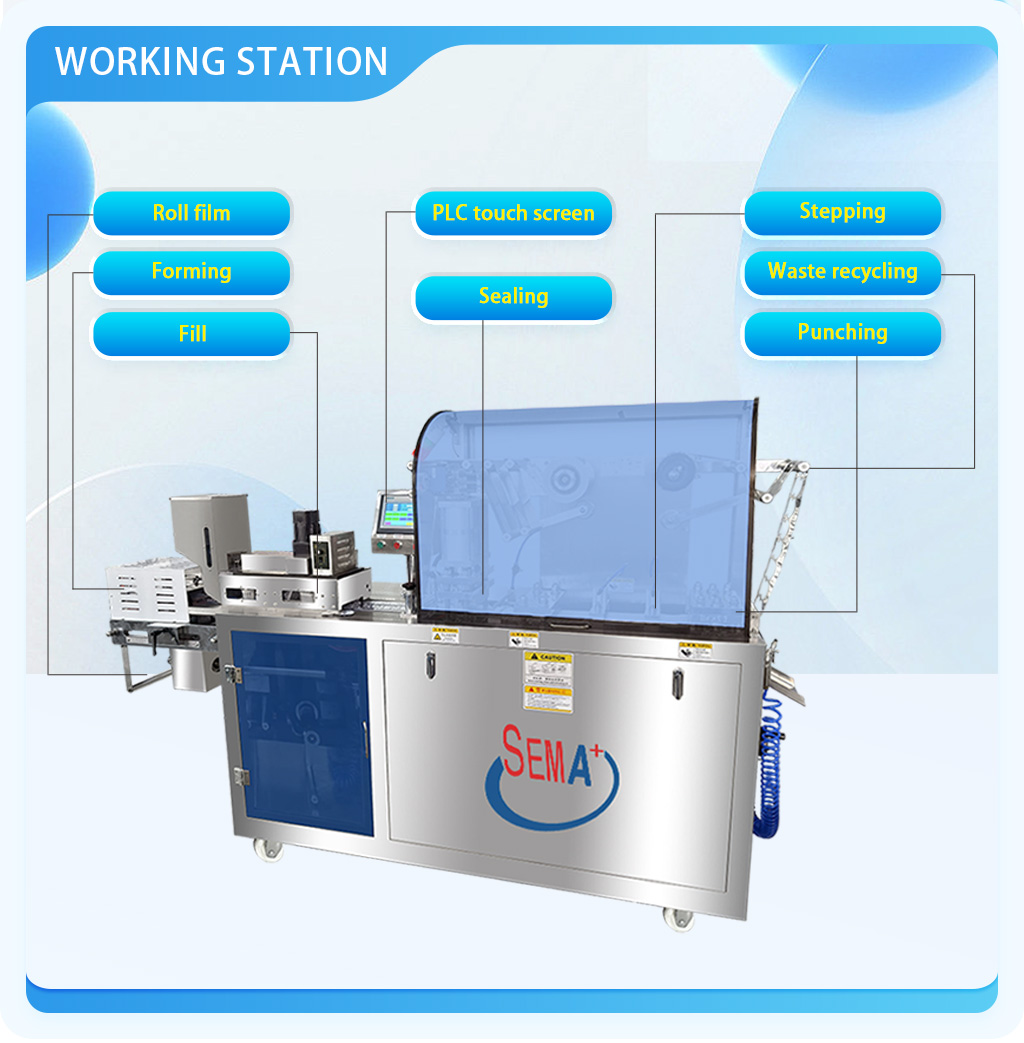

The blister packing machine after automatic plastic ampoule forming , liquid filling, sealing, cutting, the product sample will be finished.

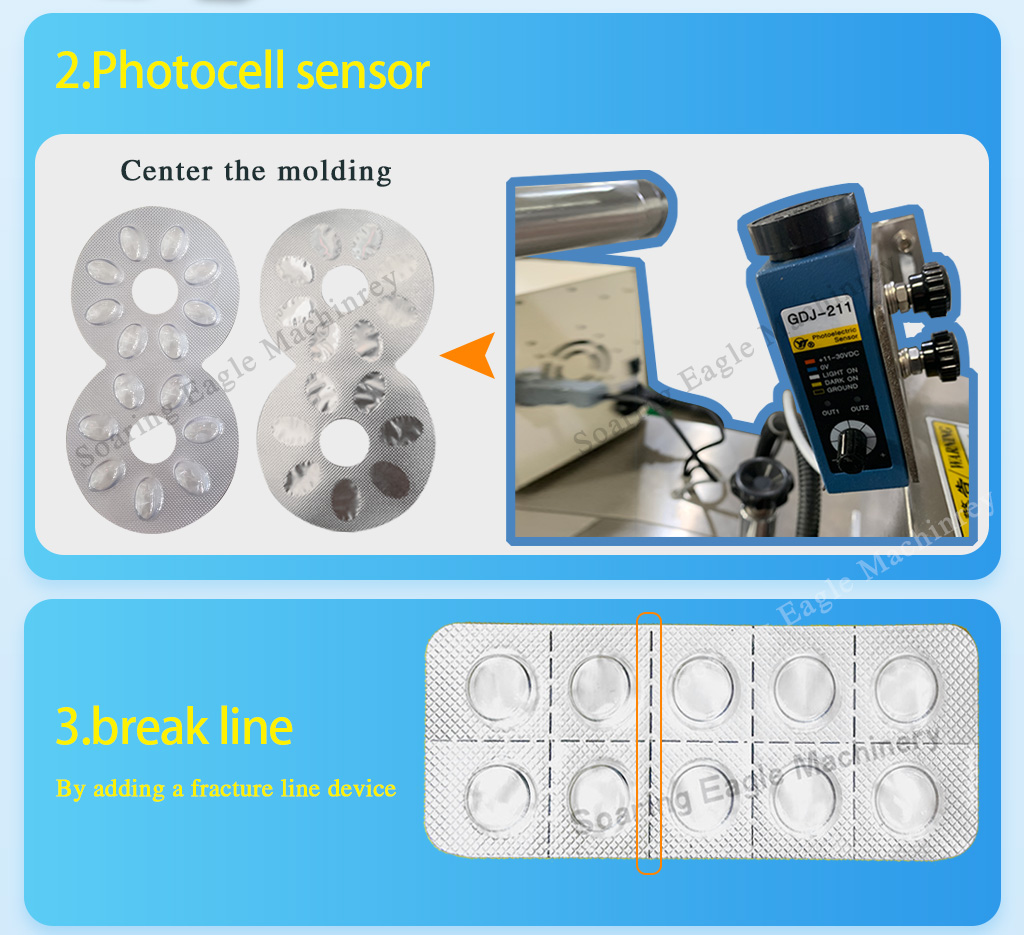

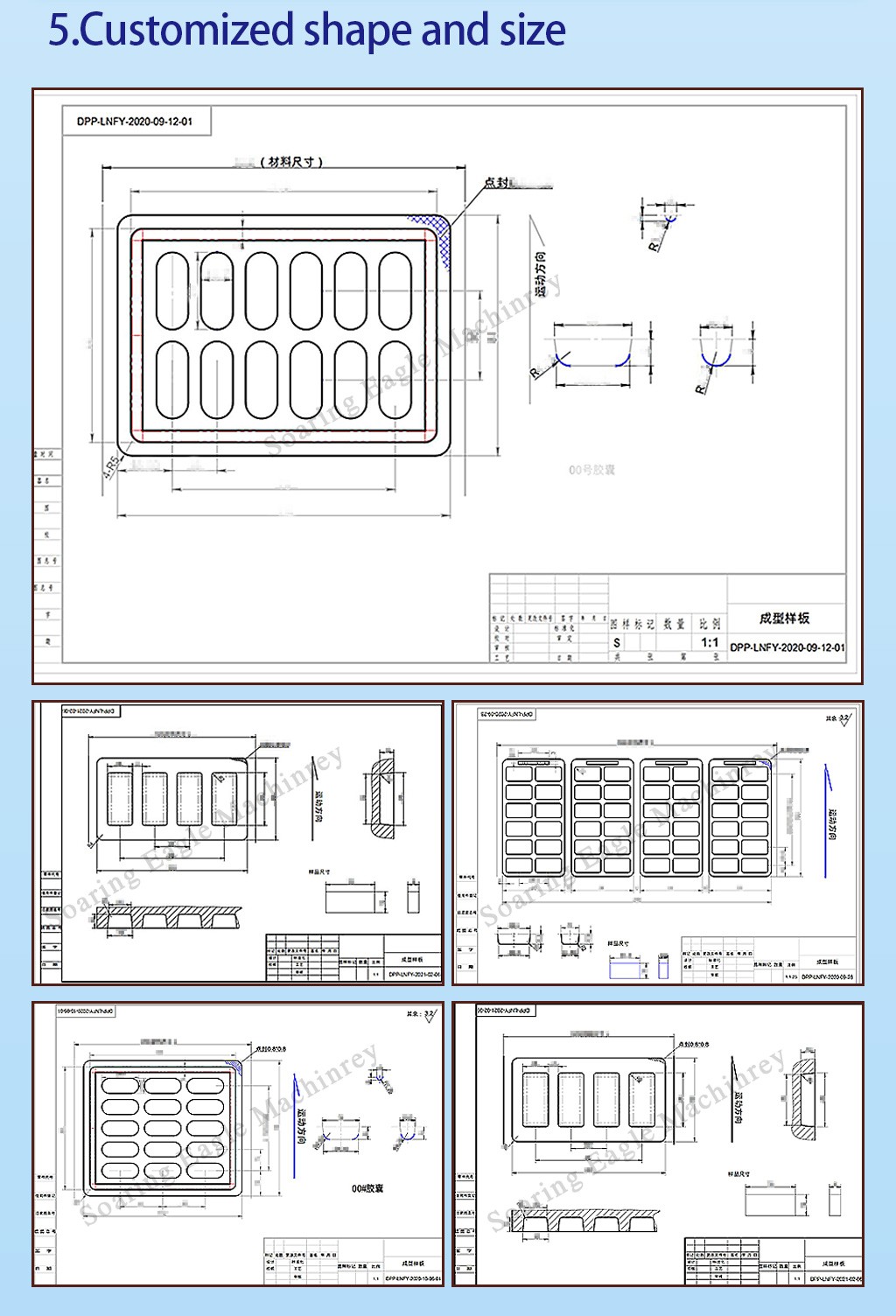

The blister packing machine could have easy tear line making and date embossing. OEM/ODM custom design the shape and size of the blister product.It is PLC control , touching screen English Operation.
Power supply:according to each country customer requirements.
Each machine has CE certificate
| Model | DPP-140 |
| Cutting Frequency | 10-35 times/min |
| Packing Film Width | 150mm |
| Max Forming Depth | 25mm or Customized |
| Max Forming Area | 145*110mm |
| Air pressure | 0.6-0.8MA |
| Total Powder Supply(or Customized) | 380V 50Hz, 8.5KW |
| PVC Hard Film | (0.15-0.5)*250mm |
| PTP Aluminum Film | (0.02-0.035)*250mm |
| Dialysis Paper | 50-100g*250mm |
| Mould Cooling | Tap Water or Recycling Water |
| Overail Dimension(L*W*H) | 2315*635*1405mm |
| Machine Weight | 820kg |
