Blister Packing Machine

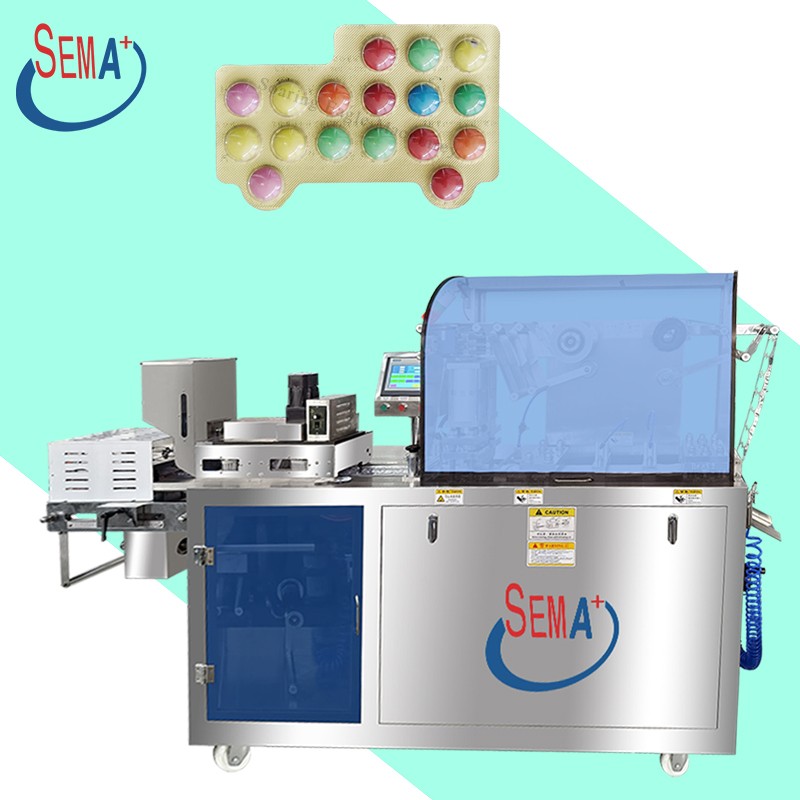

Medical Tablet Plastic Aluminum Plastic Bubble Cover Packaging Machine Forming and Sealing Tablet Pill Blister Packing Machine

Blister packing machine is suitable for packaging eye-mark, medical, cream, medicine, cosmetics, food, chemical products, such as single-dose liquid syrup,olive oilketchupjambutterchocolate sauce, honeyperfume, lotion, cosmetic, essential oilfertilizer, pesticide, etc.
The blister packing machine after automatic plastic ampoule forming , liquid filling, sealing, cutting, the product sample will be finished.
The blister packing machine could have easy tear line making and date embossing. OEM/ODM custom design the shape and size of the blister product.It is PLC control , touching screen English Operation.
Power supply:according to each country customer requirements.
Each machine has CE certificate

ModelDPP-140
Cutting Frequency10-35 times/min
Packing Film Width150mm
Max Forming Depth25mm or Customized
Max Forming Area145*110mm
Air pressure0.6-0.8MA
Total Powder Supply(or Customized)380V 50Hz, 8.5KW
PVC Hard Film(0.15-0.5)*250mm
PTP Aluminum Film(0.02-0.035)*250mm
Dialysis Paper50-100g*250mm
Mould CoolingTap Water or Recycling Water
Overail Dimension(L*W*H)2315*635*1405mm
Machine Weight820kg
