Blister Packing Machine

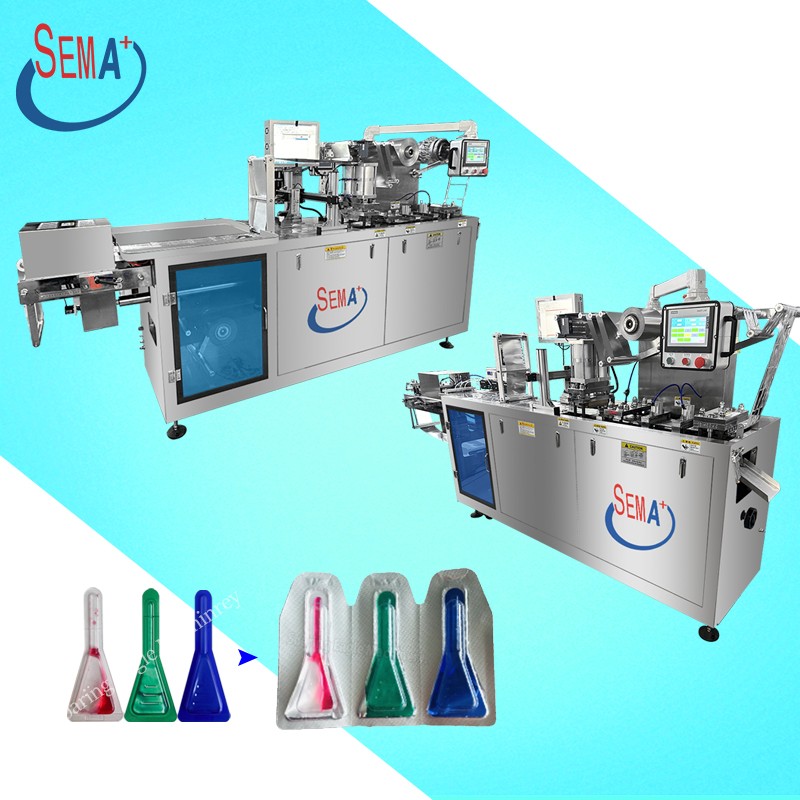

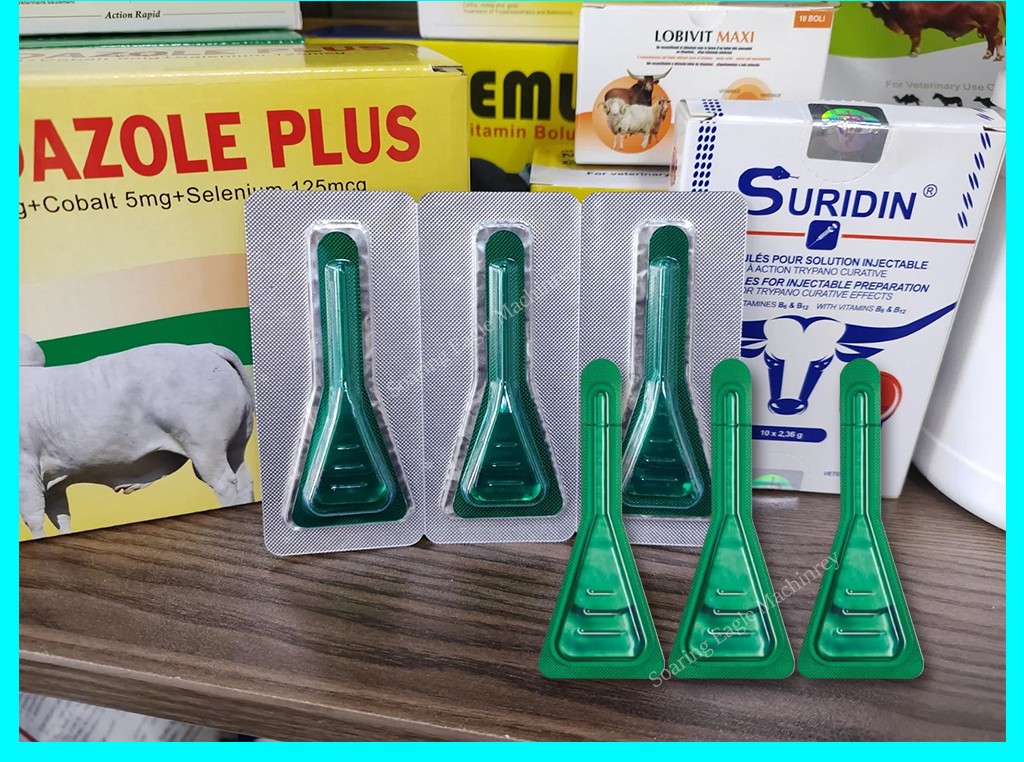

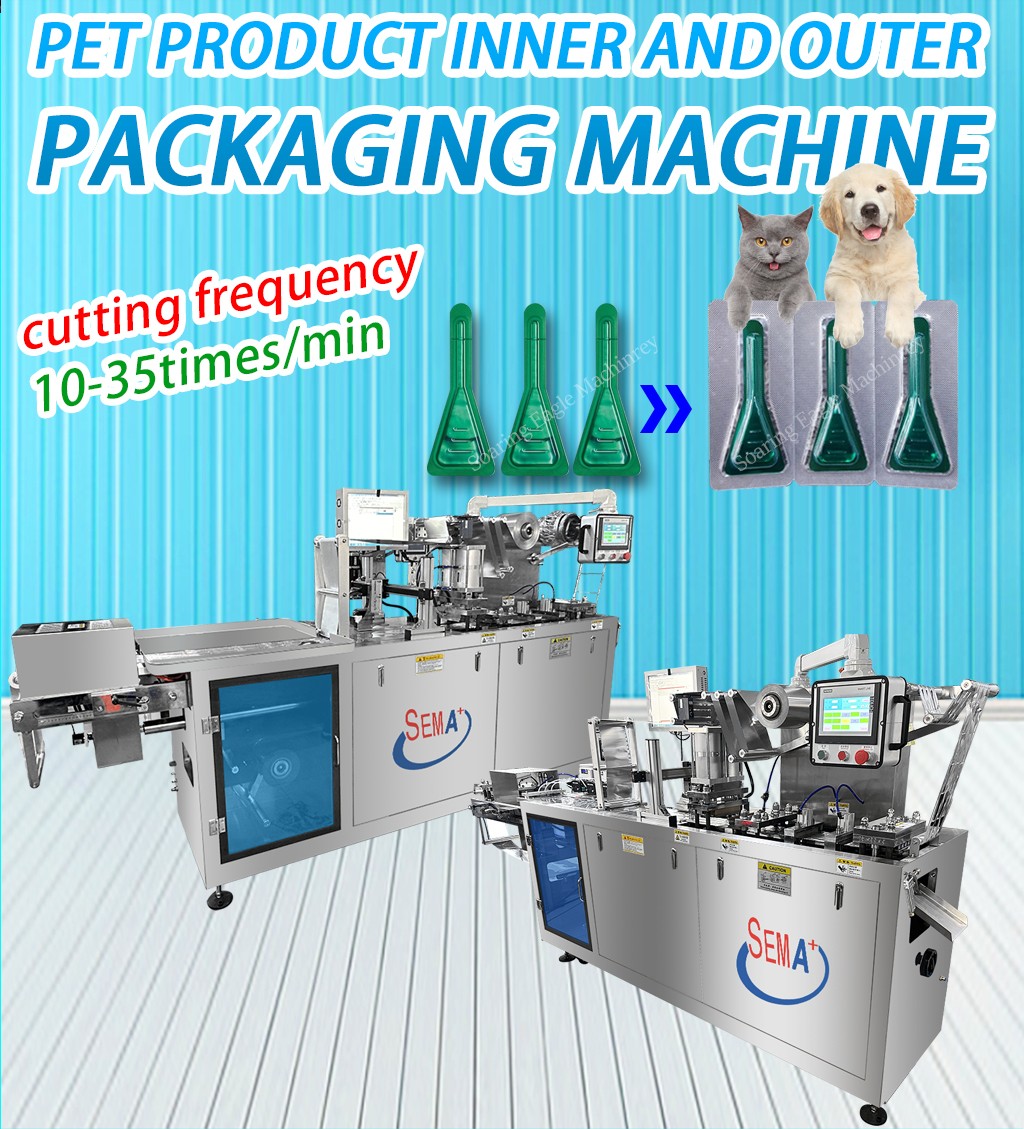

repellent inner and outer combination blister packaging machine pet drop insect repellent droplet blister packaging machine

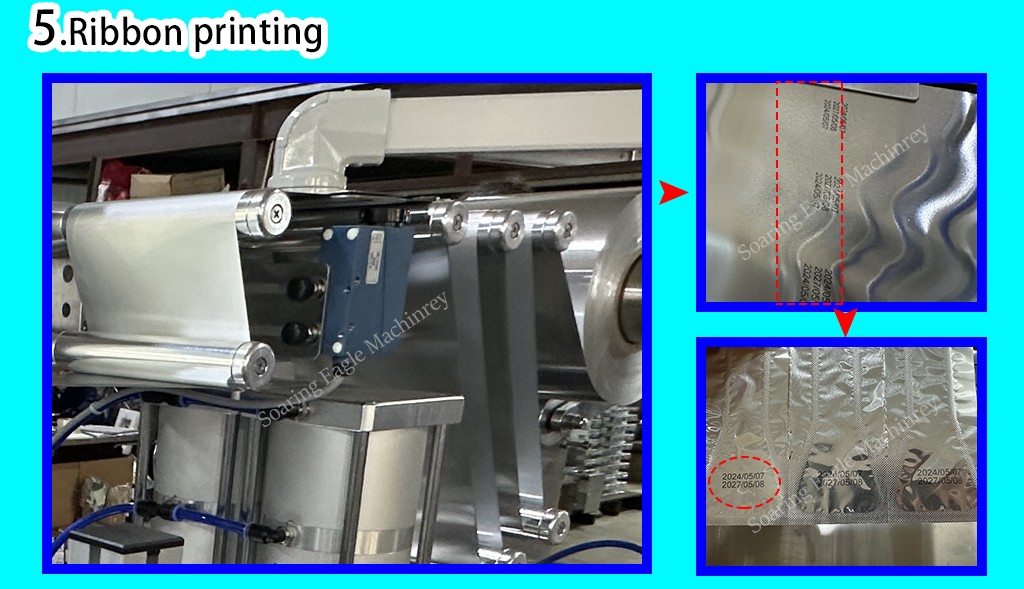

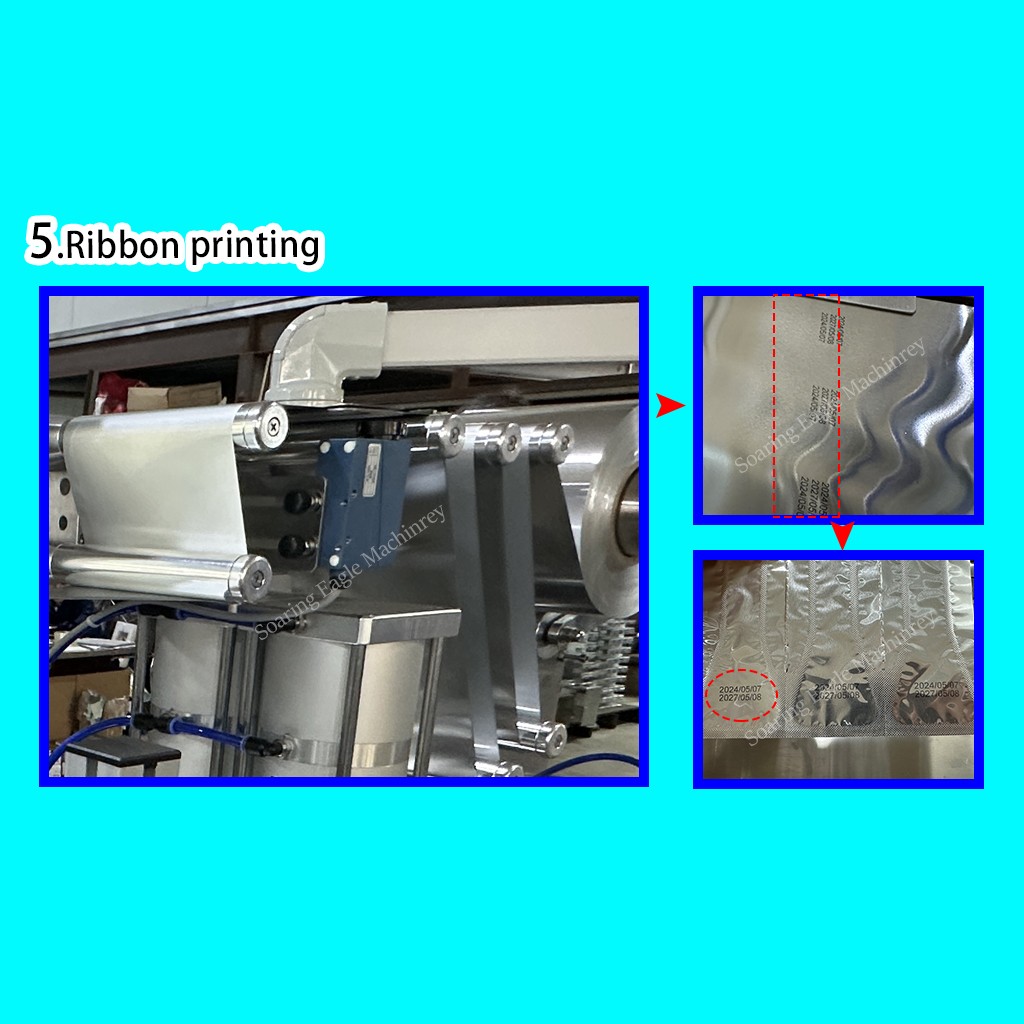

Blister packing machine is suitable for packaging eye-mark,  cream, cosmetics, food, chemical products, such as single-dose liquid syrup,olive oil, ketchup, jam, butter, chocolate sauce, honey, perfume, lotion, cosmetic, essential oil, fertilizer, pesticide, etc. The blister packing machine after automatic plastic ampoule forming , liquid filling, sealing, cutting, the product sample will be finished. The blister packing machine could have easy tear line making and date embossing. OEM/ODM custom design the shape and size of the blister product.It is PLC control , touching screen English Operation. Power supply:according to each country customer requirements. Each machine has CE certificate.

model
DPP-140

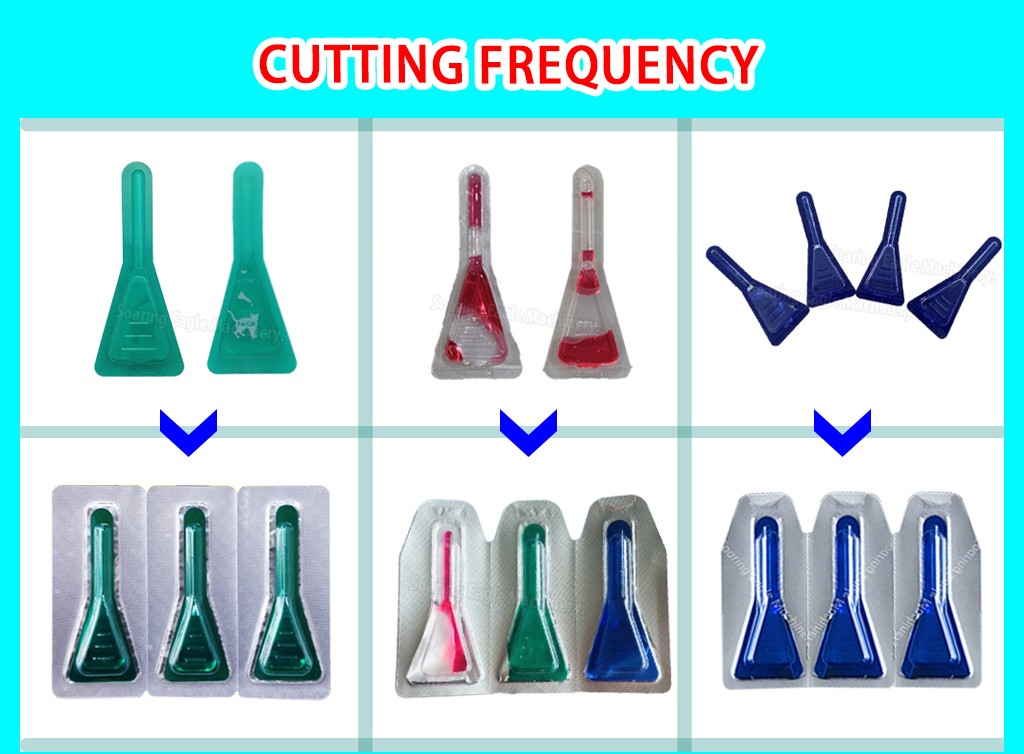

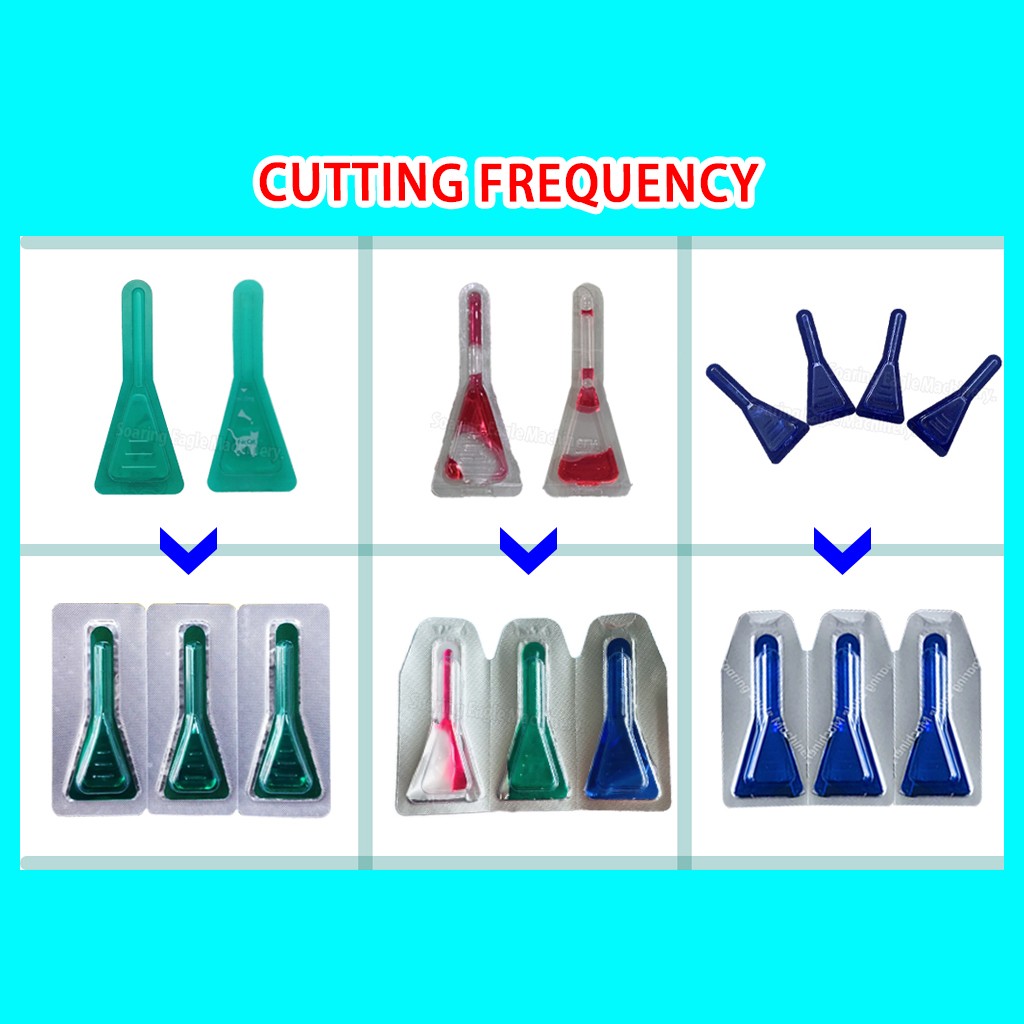

Cutting Frequency
10-35 times/min
Packing Film Width
150mm
Max Forming Depth
25mm or Customized
Max Forming Area
145*110mm
Air pressure
0.6-0.8MA
Total Powder Supply(or Customized)
380V 50Hz, 8.5KW
PVC Hard Film
(0.15-0.5)*250mm
PTP Aluminum Film
(0.02-0.035)*250mm
Dialysis Paper
50-100g*250mm
Mould Cooling
Tap Water or Recycling Water
Overail Dimension(L*W*H)
2315*635*1405mm
Machine Weight
820kg













Hot Selling Automatic Cosmetic Liquid Shampoo Cream Chocolate Chocolate Sauce Blister Packaging Machine Automatic Cosmetic Paste Shampoo Cream Chocolate Chocolate Sauce Blister Packing Packaging Machine Automatic liquid cream cosmetic sample lotion face cream plastic blister packaging machine Factory Price High Speed Automatic Blister Packing Machine For Liquid Food Cosmetic Automatic cosmetic lotion face cream essence blister packaging machine

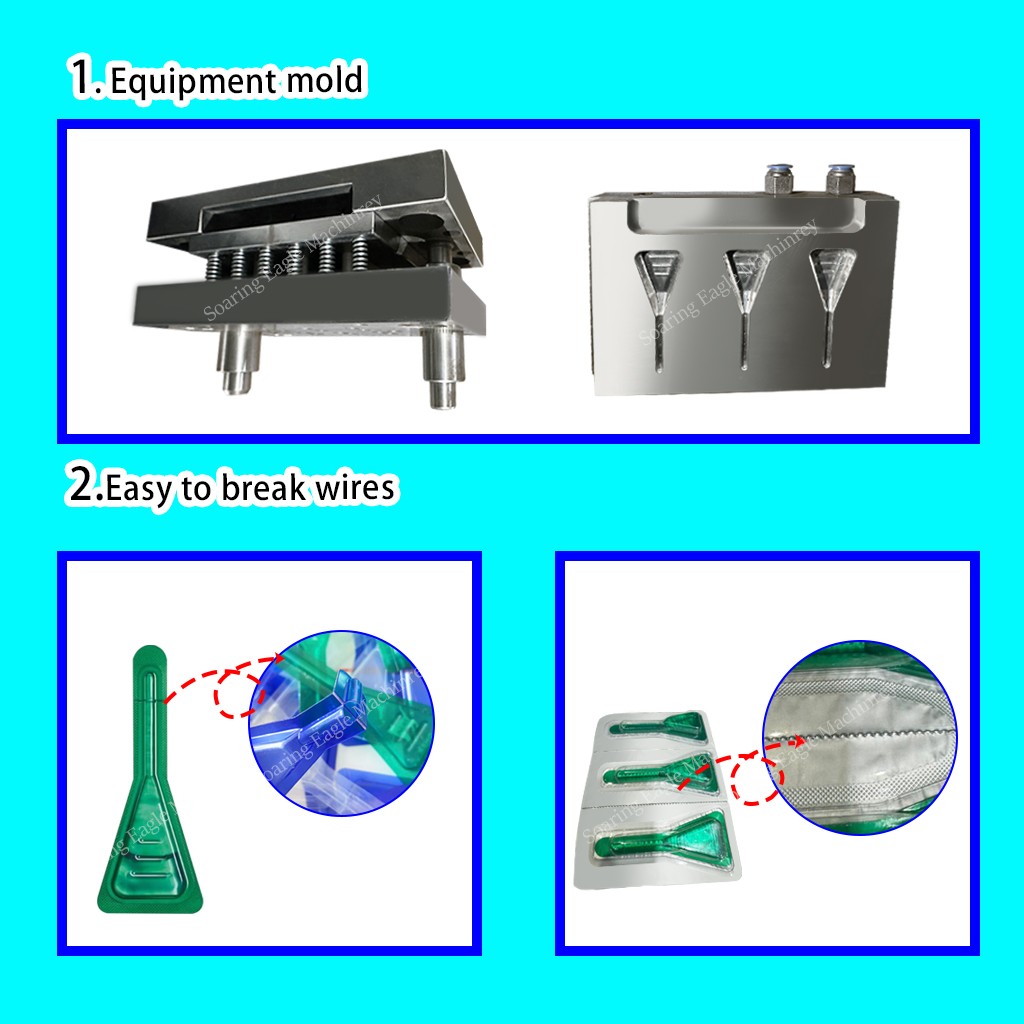

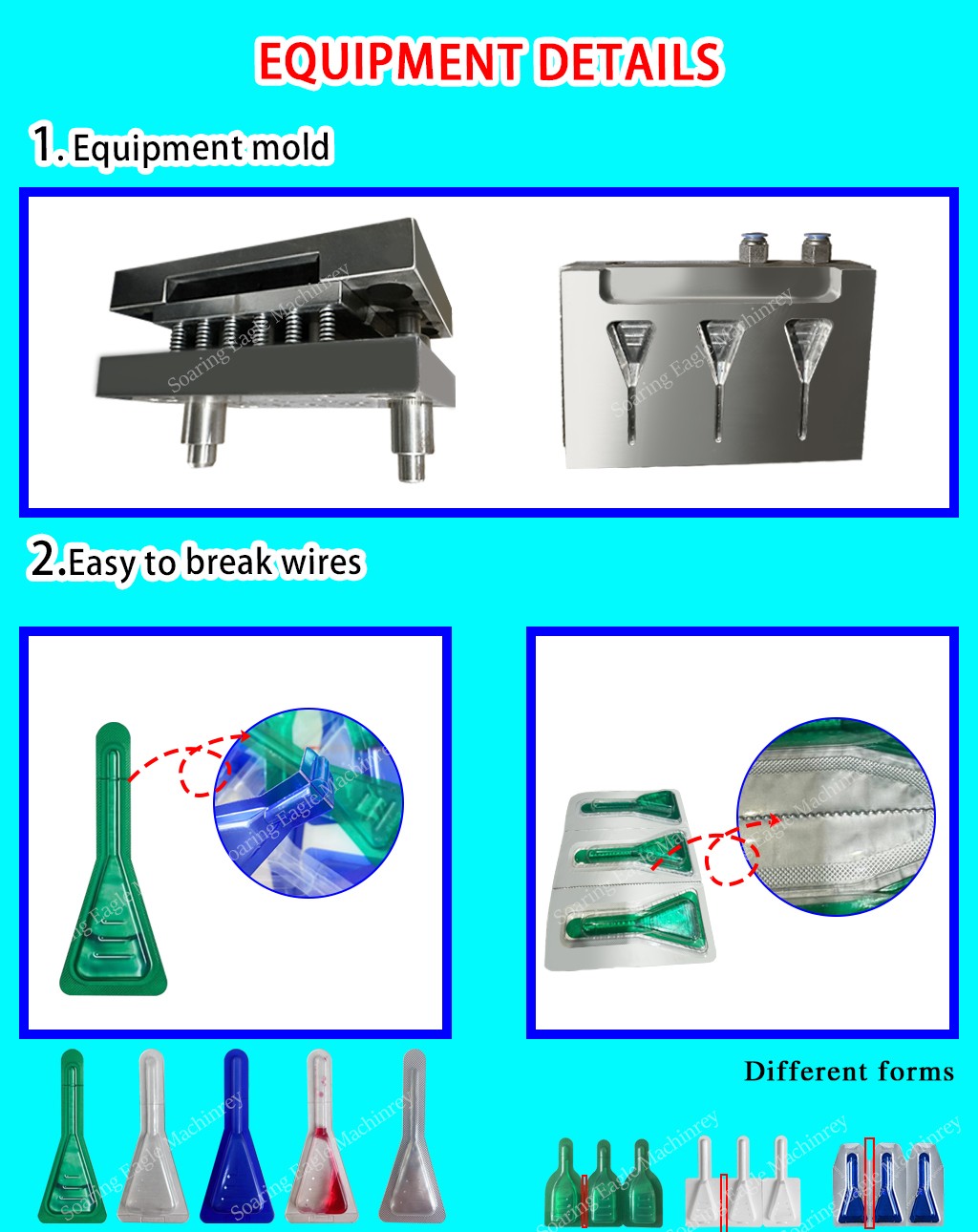

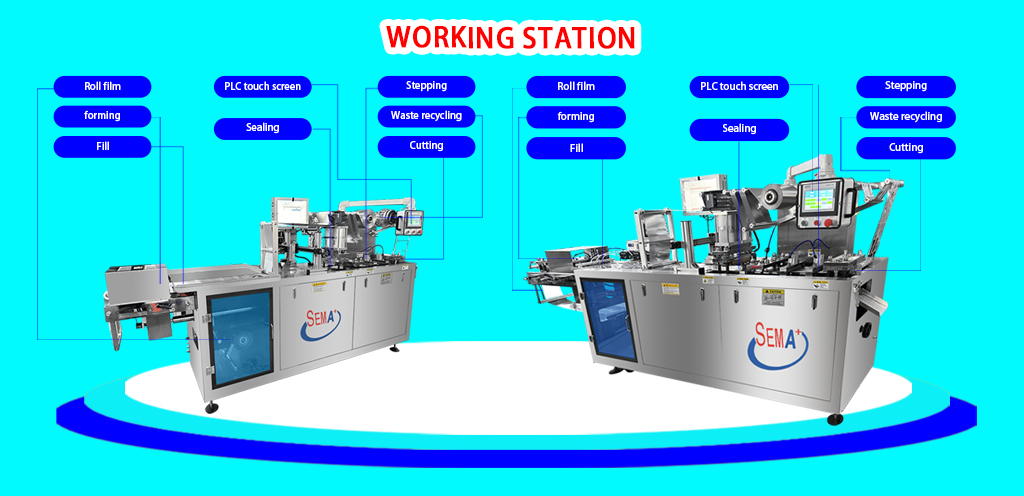

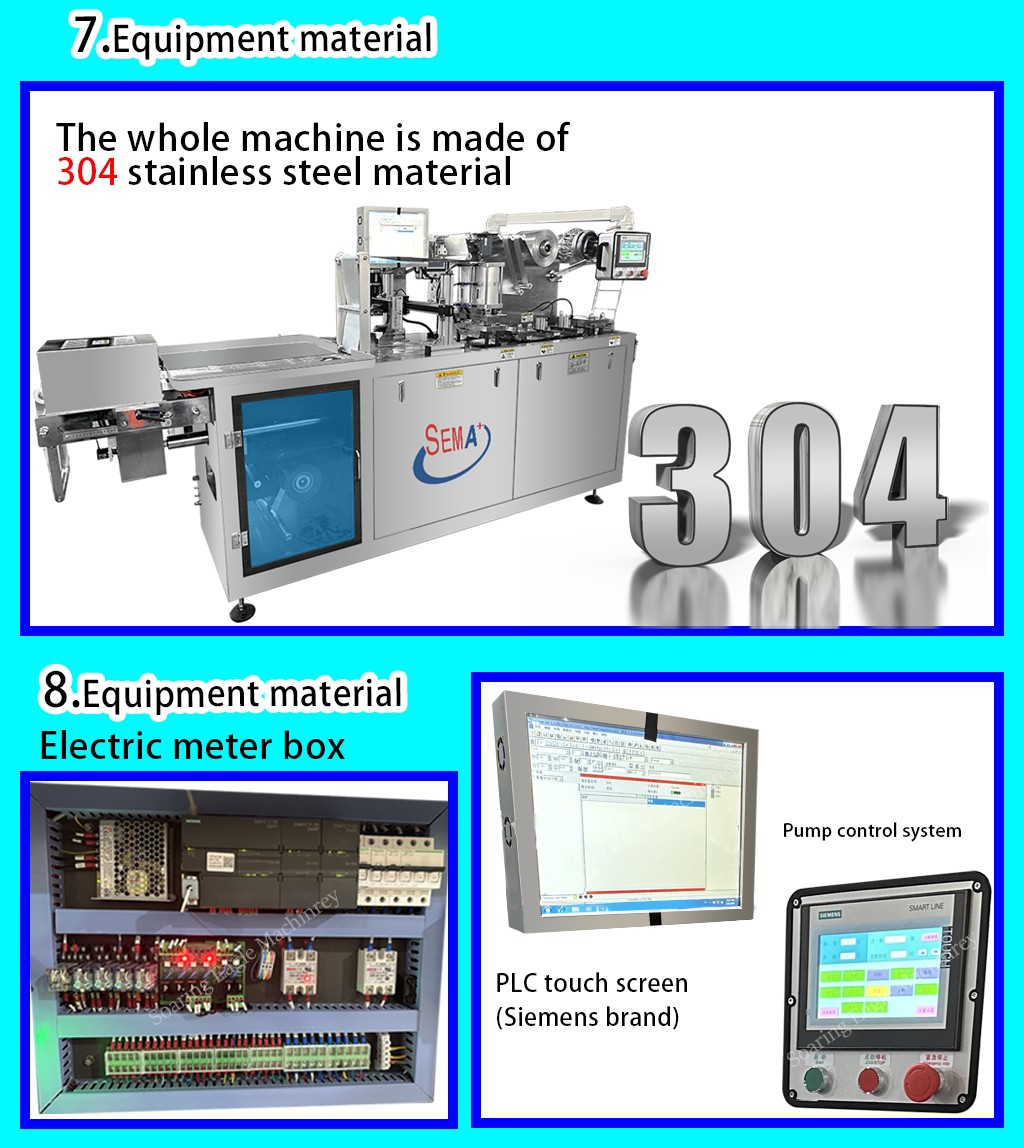

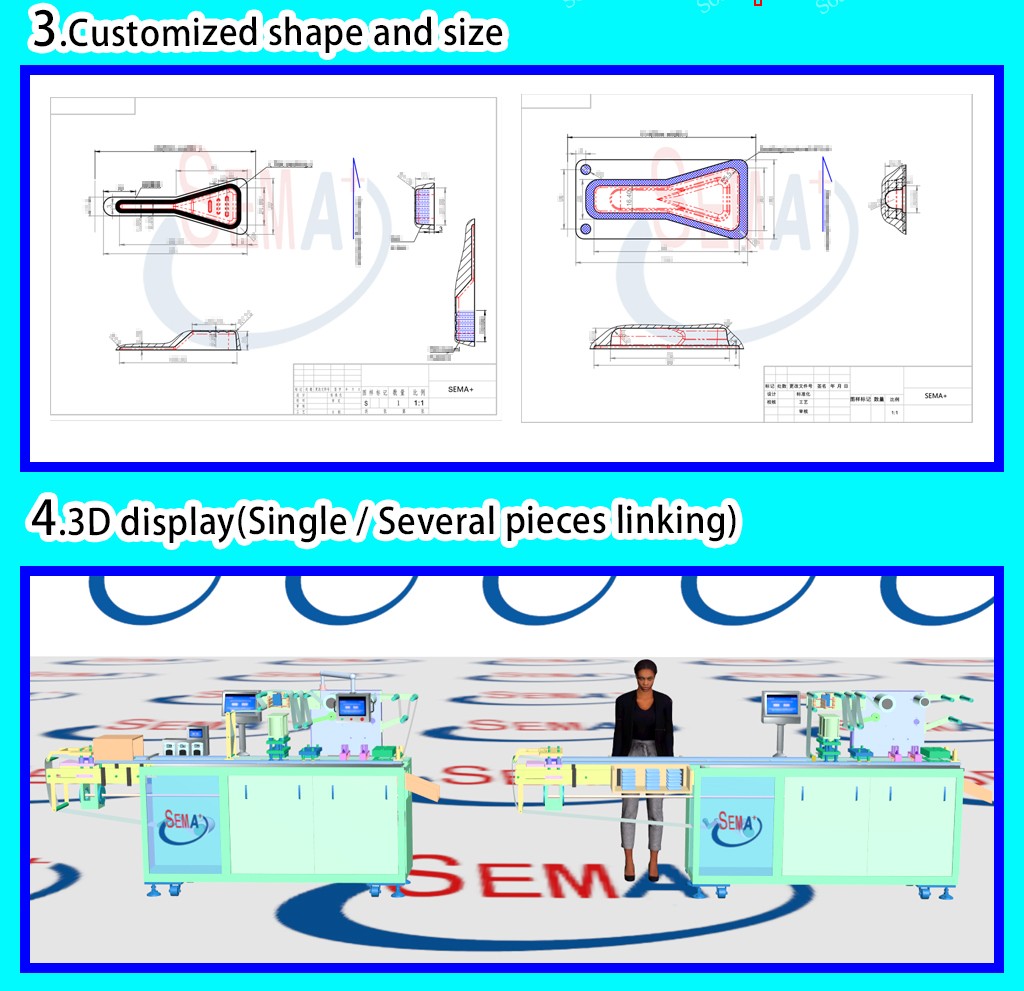

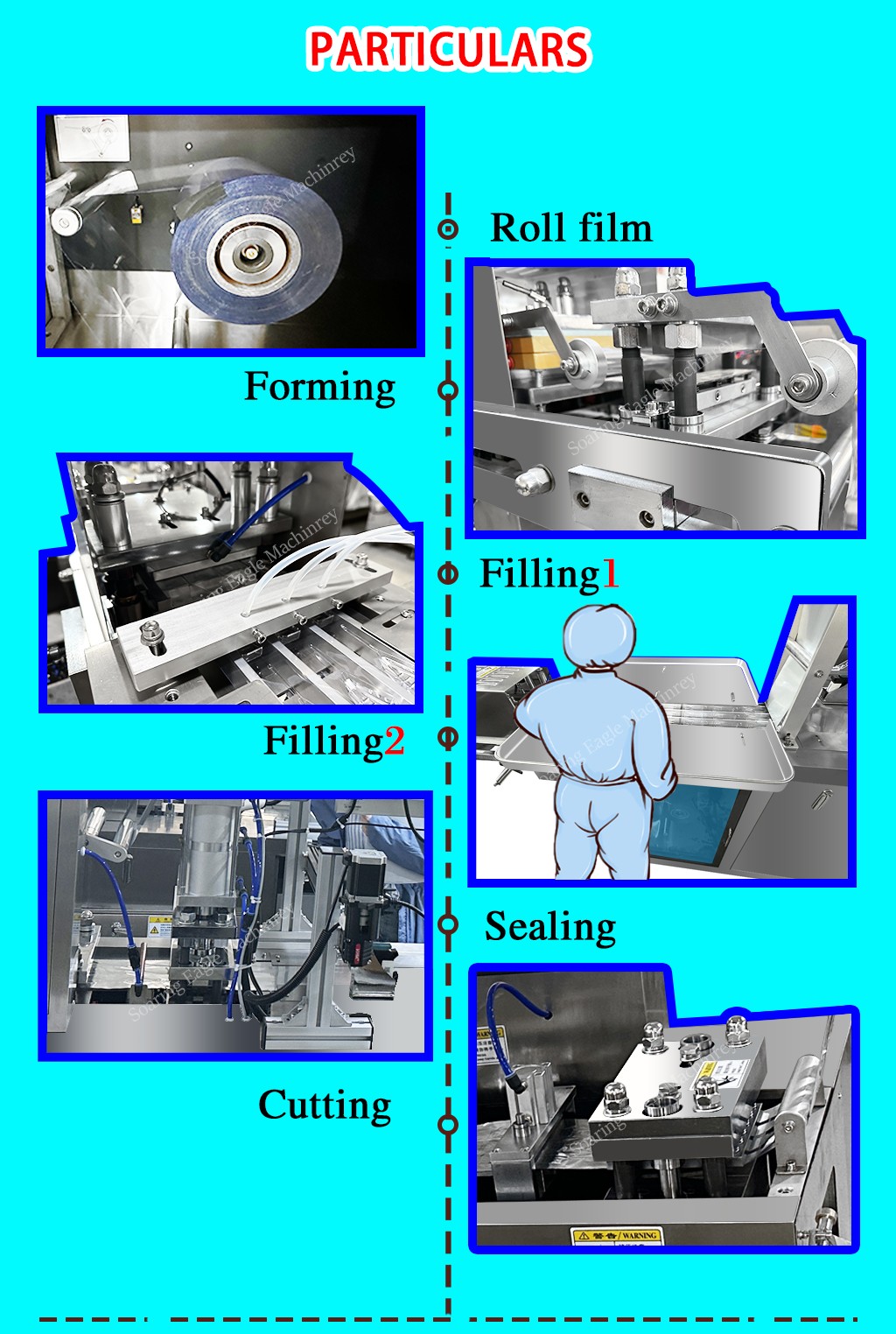

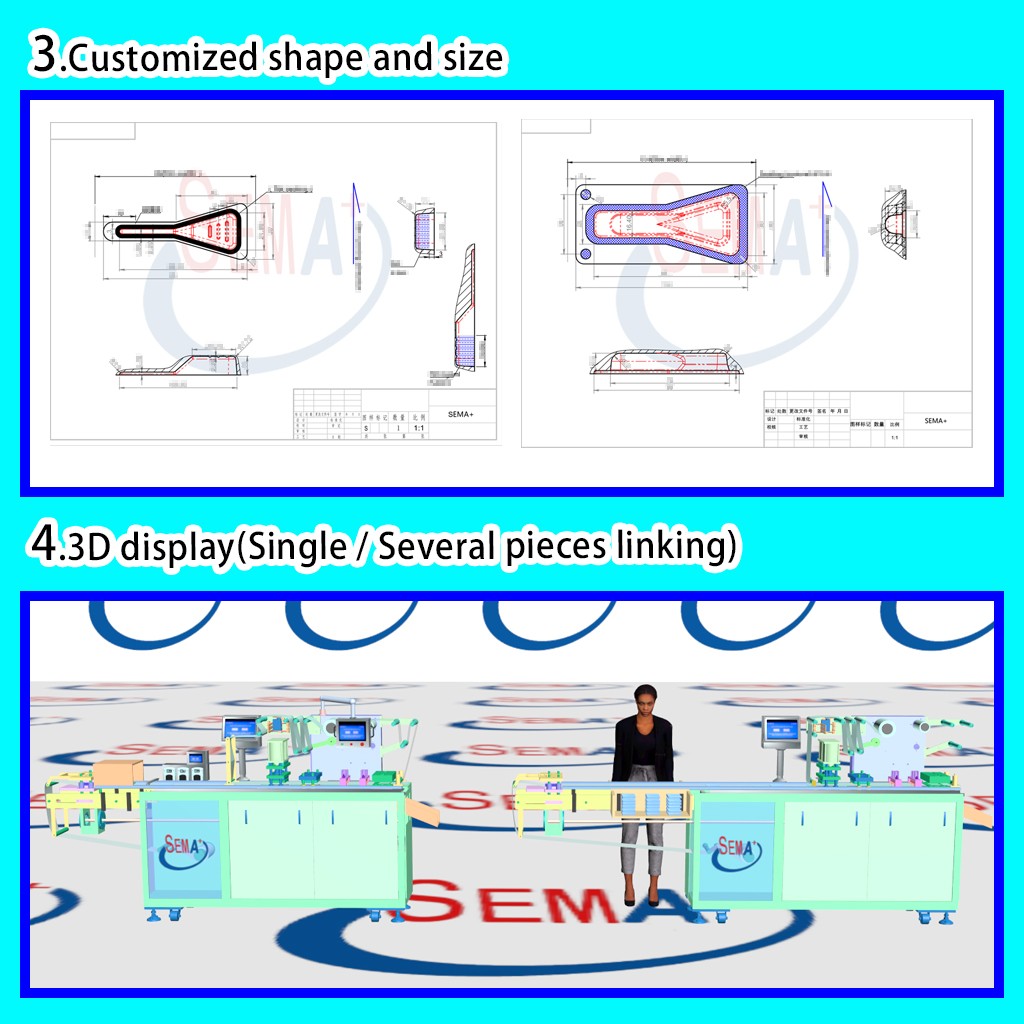

*The machine will do product shape forming , liquid dosing , sealing film eye marking , sealing , cutting all automatically . *According to customer requirements to design the product shape and size. *Panasonic servo motor control for choice *PLC touching screen Siemens Brand*Different pump for choice for liquid ,cream , sticky products etc. *Waste film receiving device for choose. *Machine cover for choose. *All machine structure and direct contact with product parts are all made of SS304. *Easy open line making is special designed or product using convenience.
