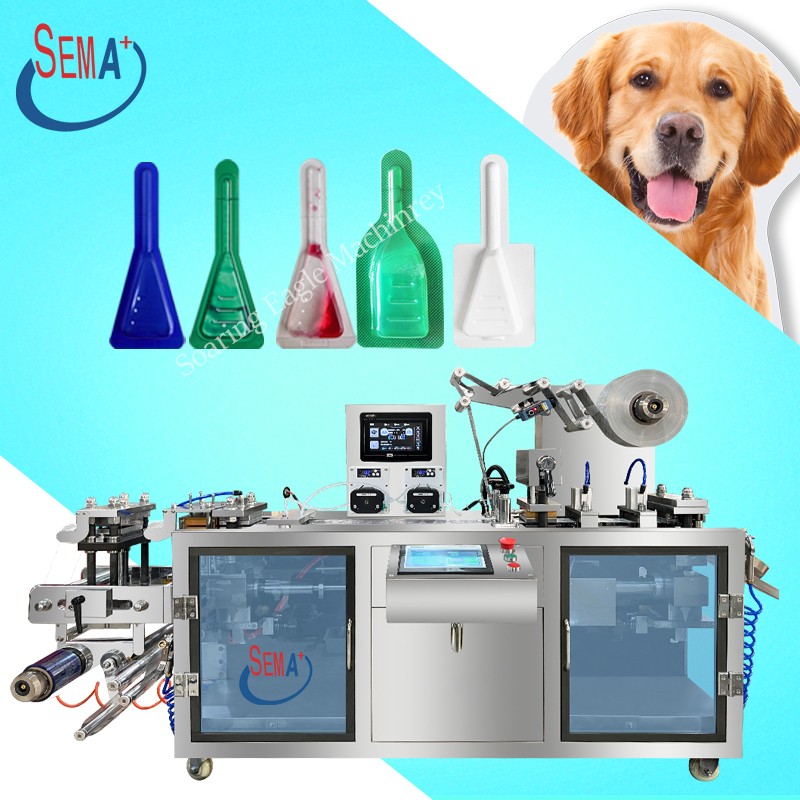

Blister packing machine is suitable for packaging cream, cosmetics, food, chemical products, such as single-dose liquid syrup,olive oil, ketchup, jam, butter, chocolate sauce, honey, perfume, lotion,essential oil, fertilizer, pesticide, etc.
The blister packing machine after automatic plastic ampoule forming , liquid filling, sealing, cutting, the product sample will be finished.
The blister packing machine could have easy tear line making and date embossing. OEM/ODM custom design the shape and size of the blister product.It is PLC control , touching screen English Operation.
Power supply:according to each country customer requirements.
Each machine has CE certificate.
model
DPP-80
Max Forming Depth
25mm(OEM)
Cutting Frequency
10-30times/min
Stroke
30-80mm
Main Power
0.75KW
Power Supply
220V50Hz
Machine Weight
400kgs
Packing Film
"Forming Film 0.150.5mm*110mm Sealing Film0.02-0.08*110mm"

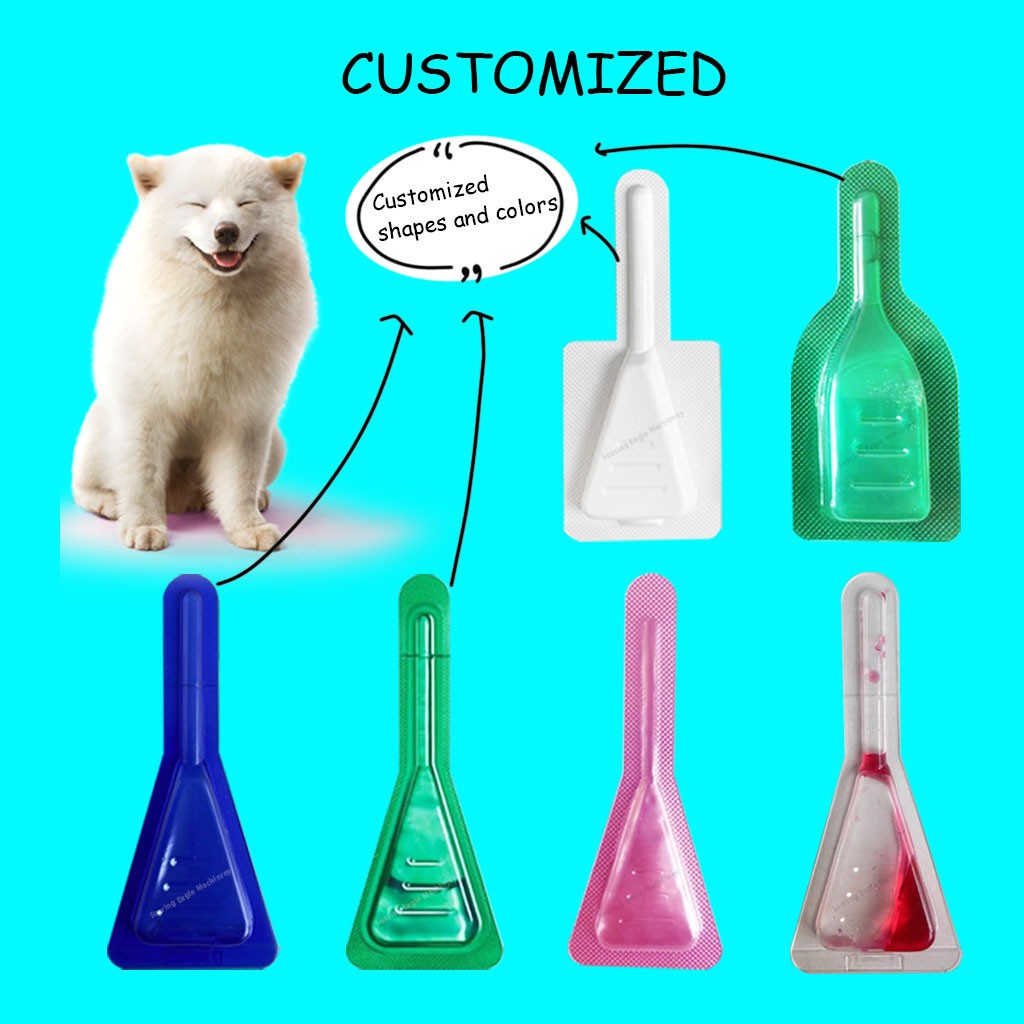

*The machine will do product shape forming , liquid dosing , sealing film eye marking , sealing , cutting all automatically . *According to customer requirements to design the product shape and size.
*Panasonic servo motor control for choice

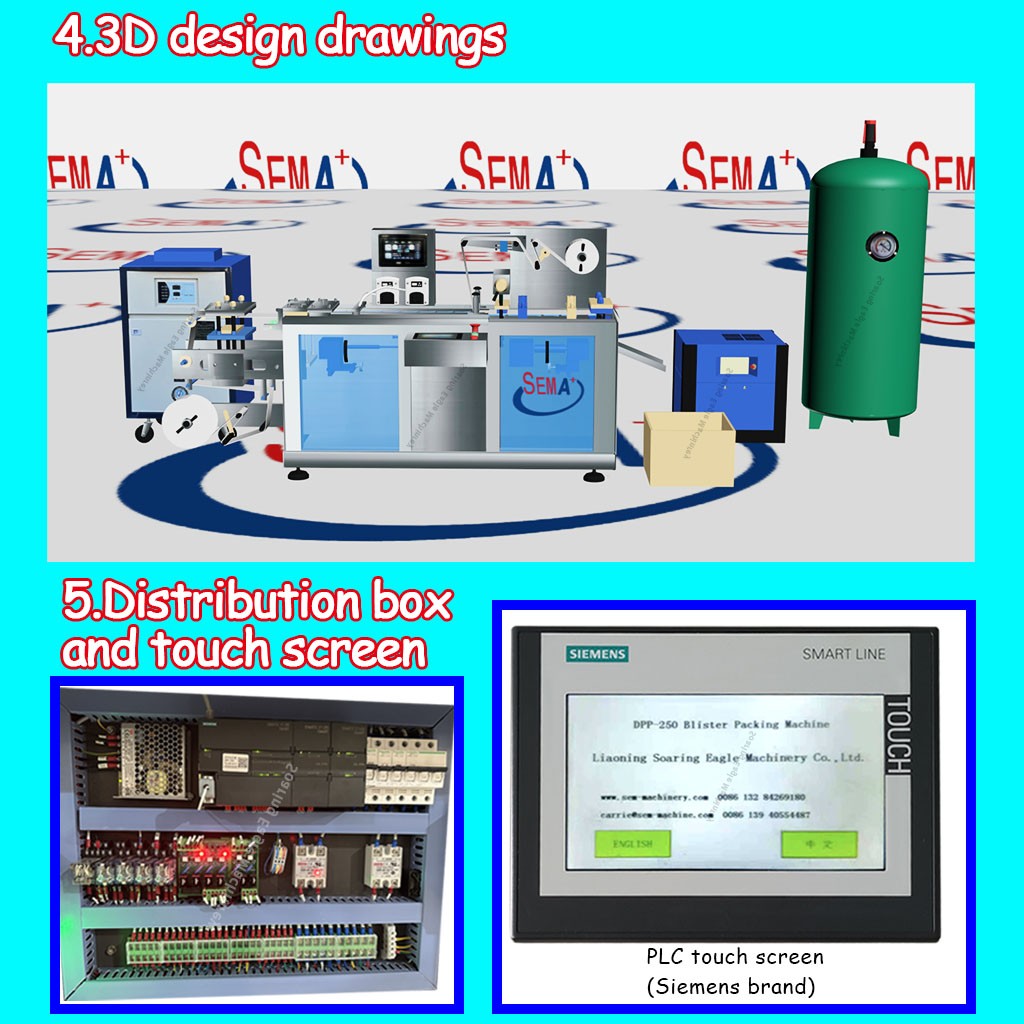

*PLC touching screen Siemens Brand*Different pump for choice for liquid ,cream , sticky products etc.
*Waste film receiving device for choose.
*Machine cover for choose.
*All machine structure and direct contact with product parts are all made of SS304.

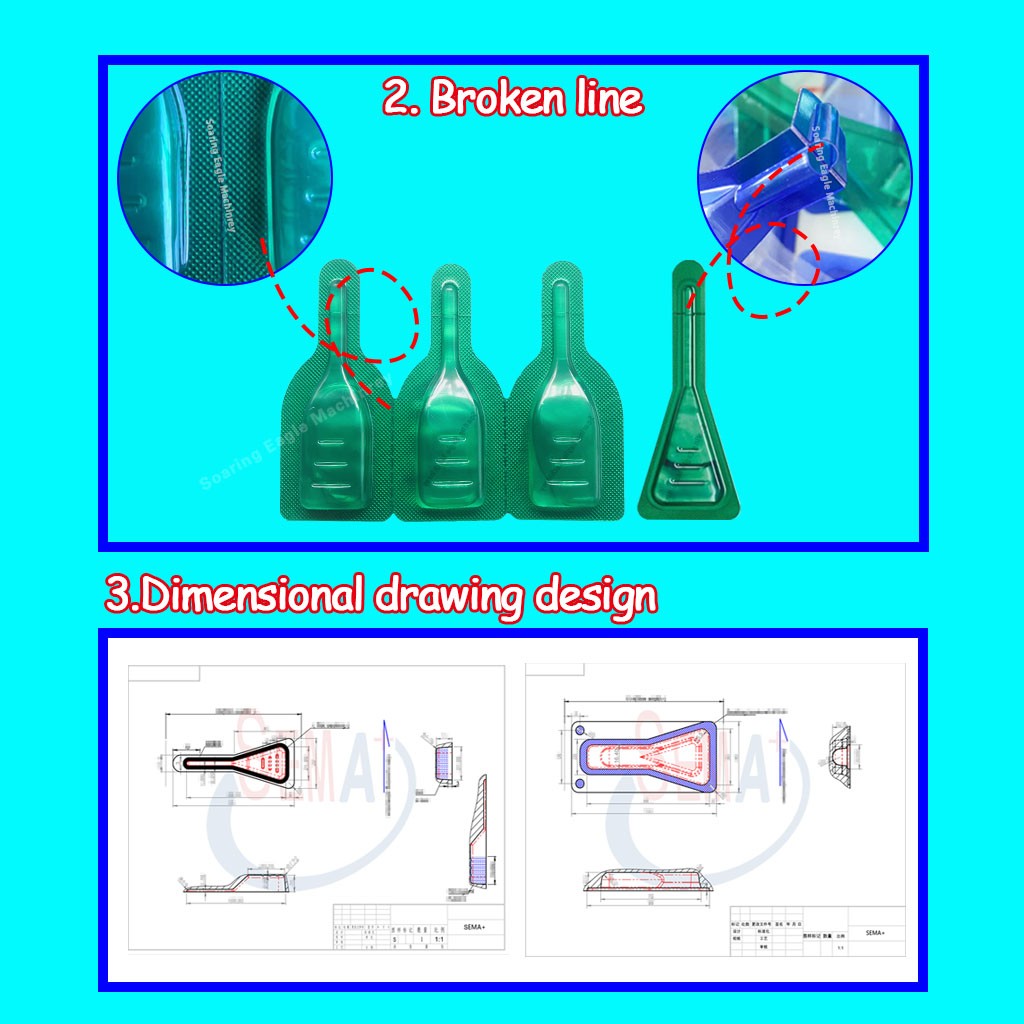

*Easy open line making is special designed or product using convenience.
