| Main Data | |
| TYPE | SEMA+ 8 lanes sachet machine |
| Bag length | 40-170mm(L) |
| Bag width | 17-40mm(W) |
| Max width of roll film | 560 mm |
| Packing speed | 220-240bag/min |

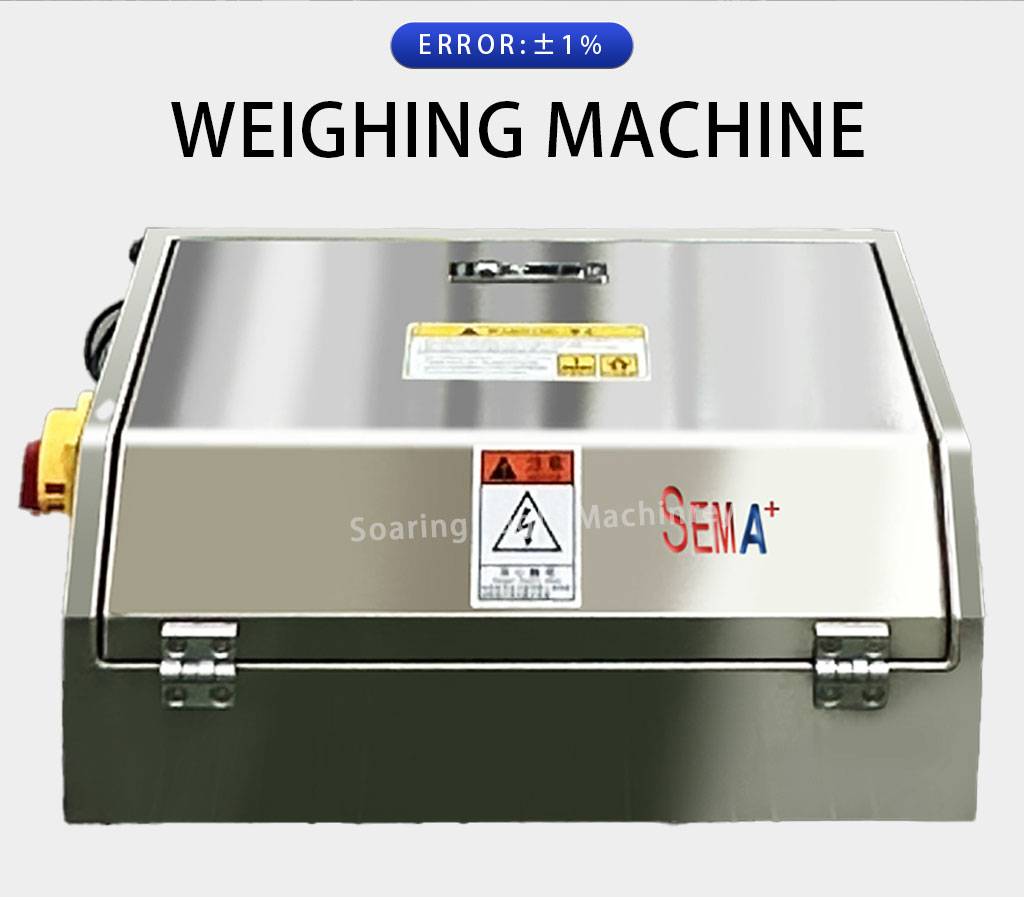

| Measuring range | 1--20g |
| Air consumption | 0.8mpa |
| Gas consumption | 0.8m3 /min |
| Power | 1N+PE/50HZ/AC220V/5KW |

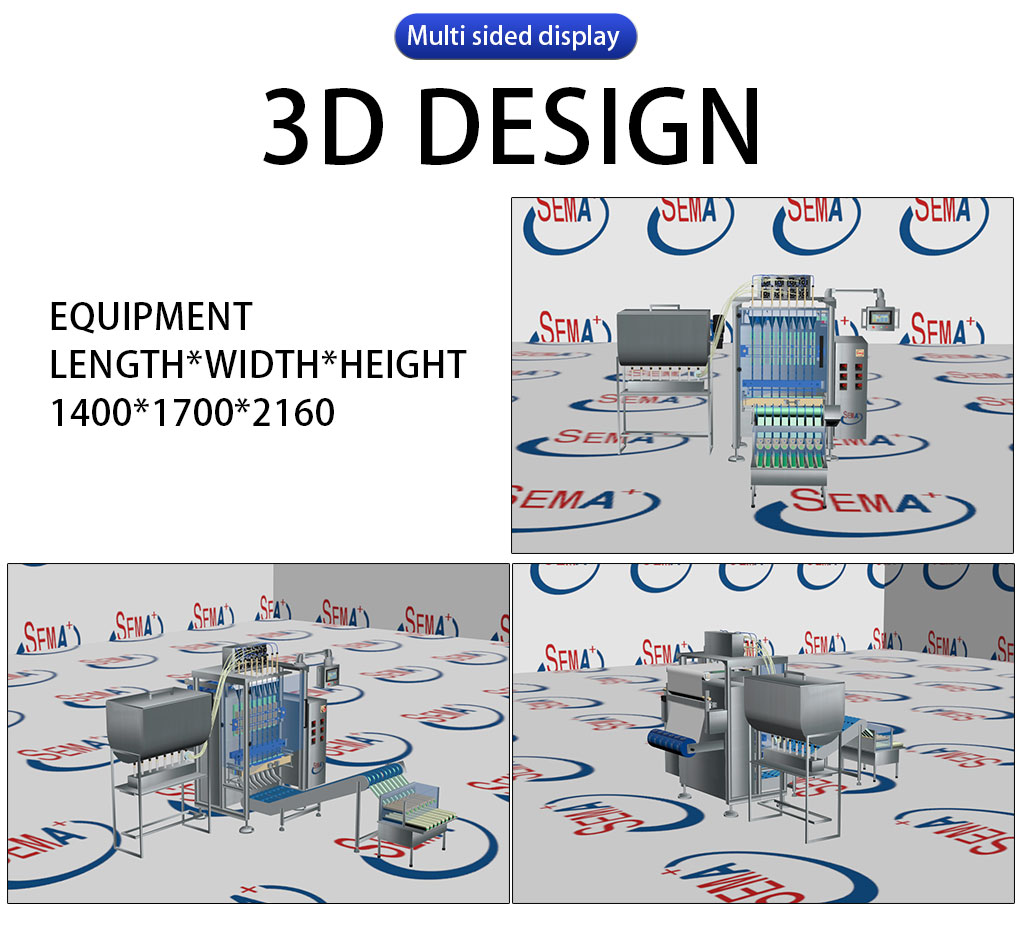

| Dimension | (L)17200mmx(w)1550mmx(H)3230mm |
| Deadwight of machine | 700 kg |

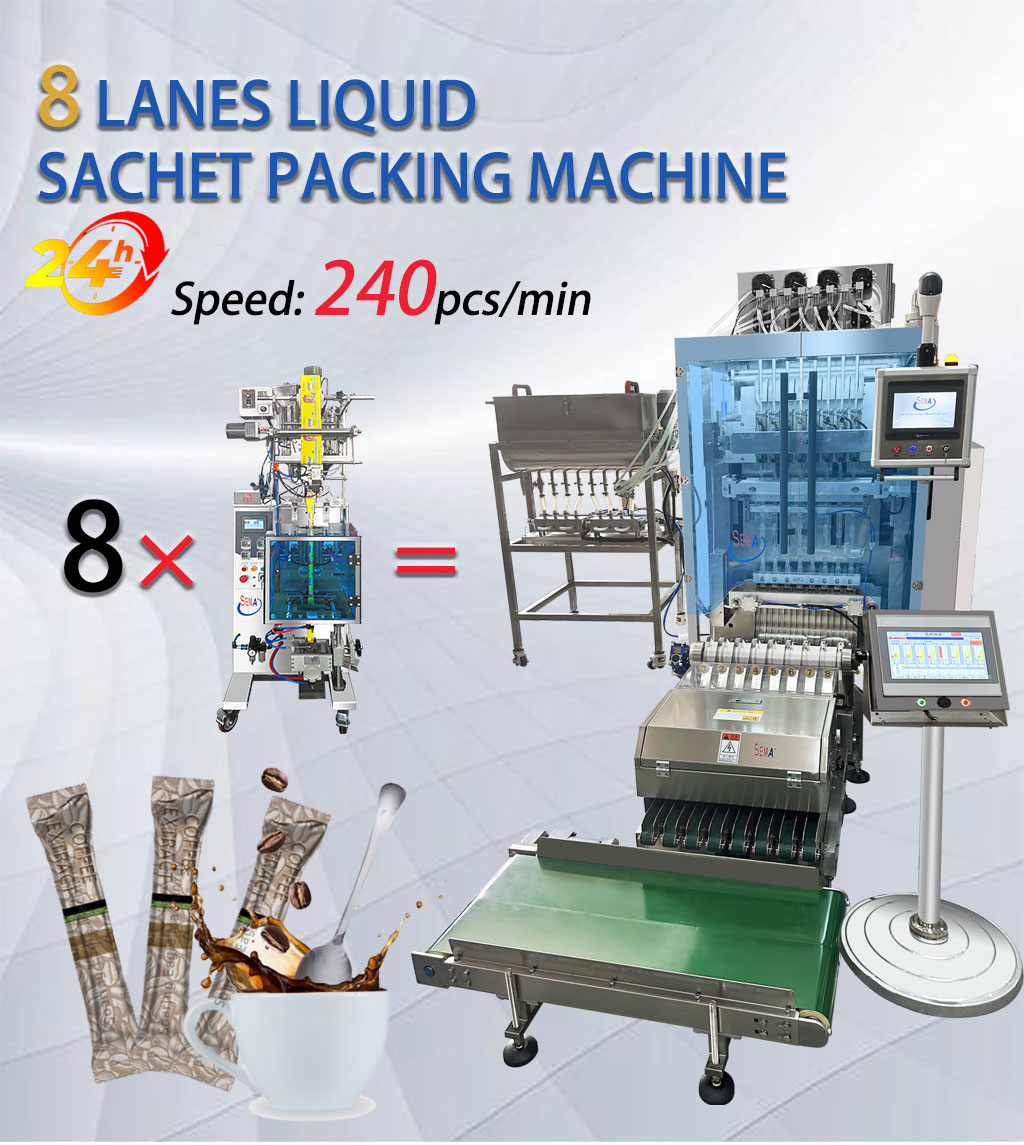

Automatic Multi Lanes Liquid Stick Vertical Pouch Bag Coffee Liquid Fill Seal Sachet Packing Machine
Packaging Machine features and technical parameters：
1. Dual languages touch screen display, operation is simple.

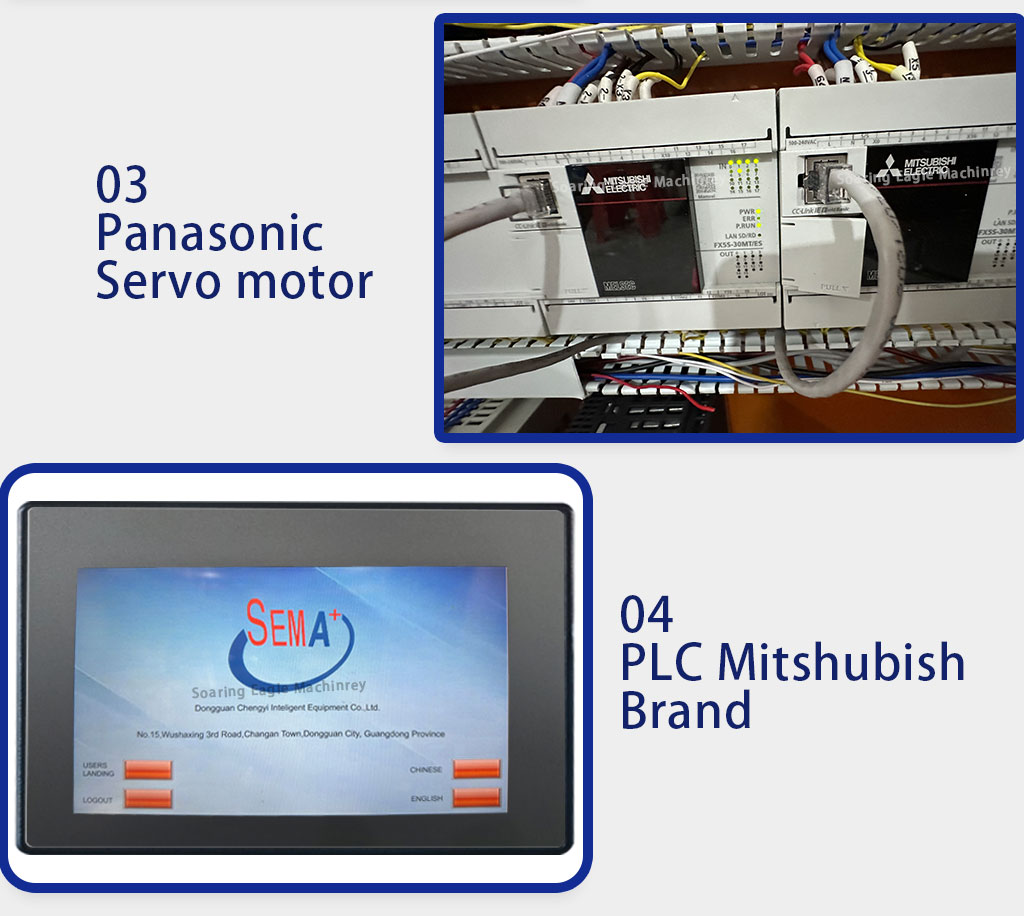

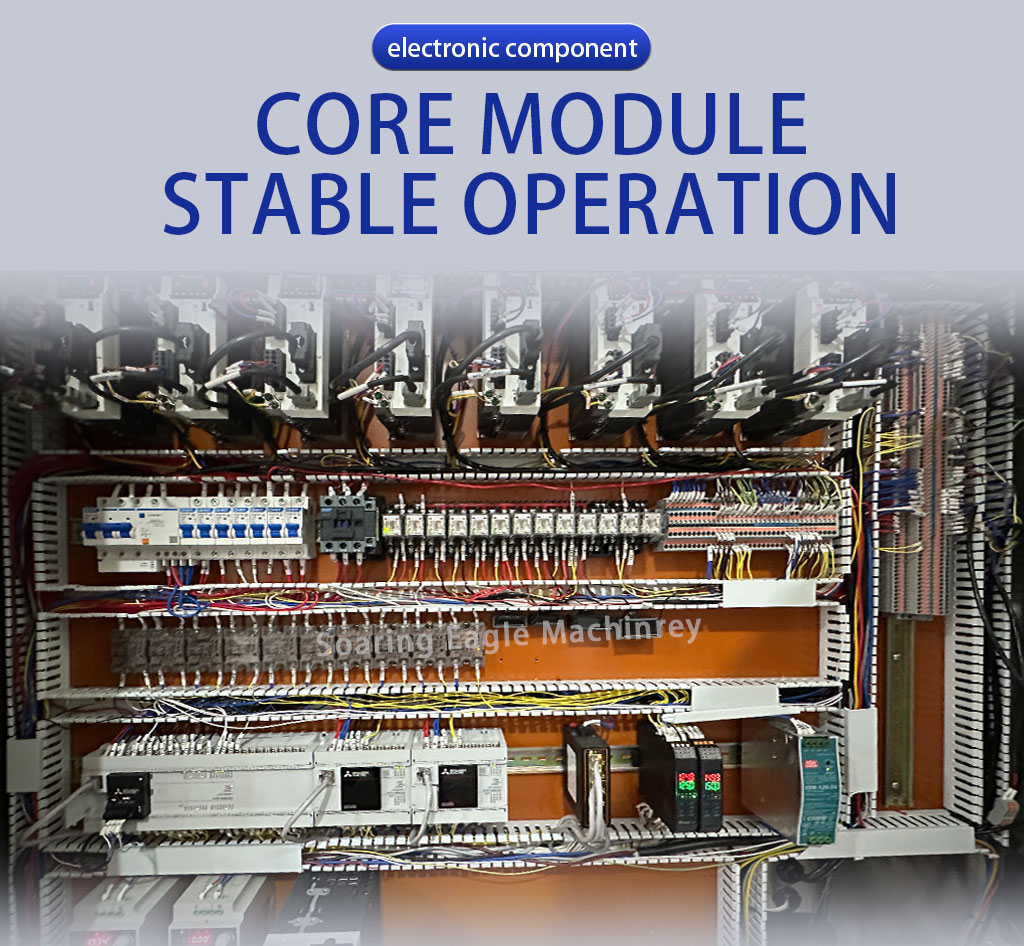

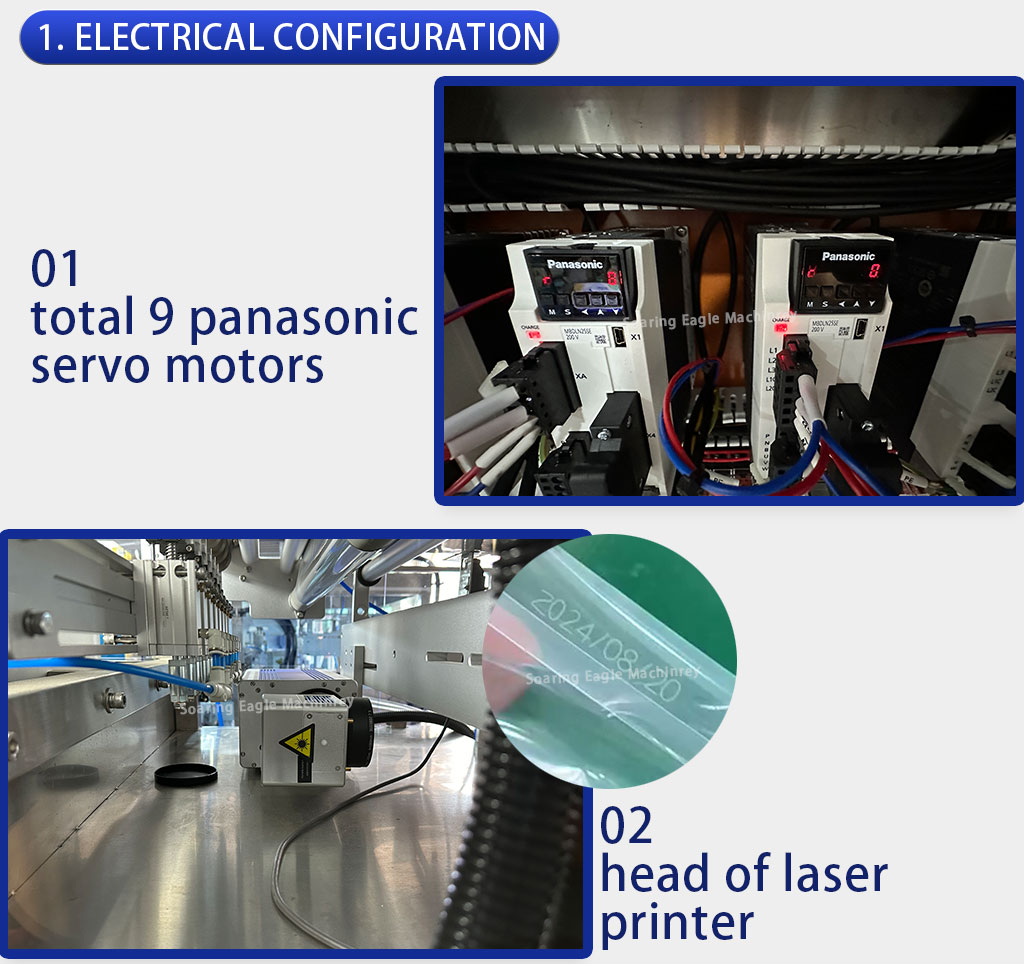

2. PLC computer control system, more stable operation, without stopping to adjust any parameters.
3. Can stock ten, change variety.

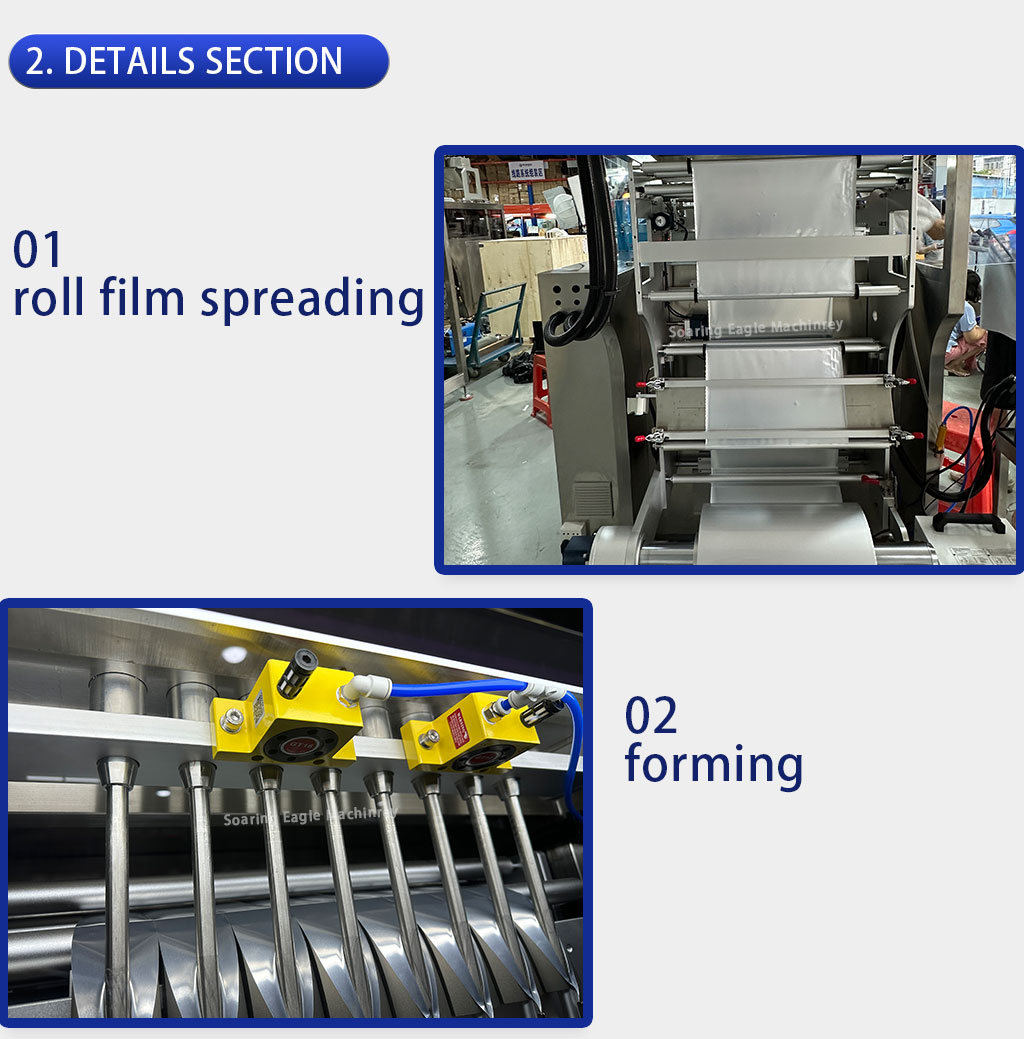

4. Servo motor film pulling, positioning is more accurate.
5. Independent temperature control systems, precision up to ± 1 ℃ degrees.
6. Horizontal, vertical temperature control, can be suitable for various composite film, PE film packing material.

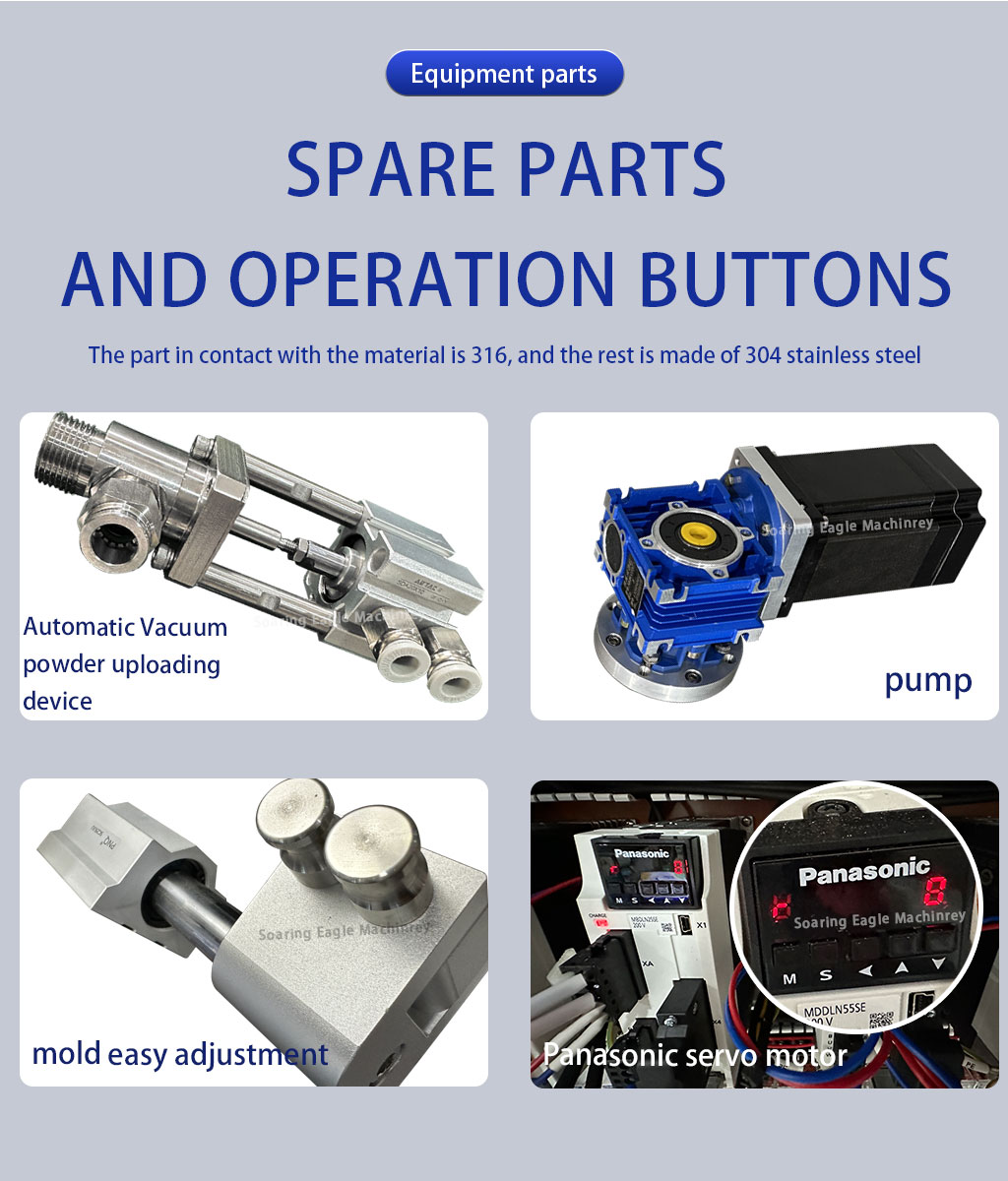

7. Mechanical material is 304 stainless steel,another parts is 316 stainless steel, in line with food hygiene requirements.

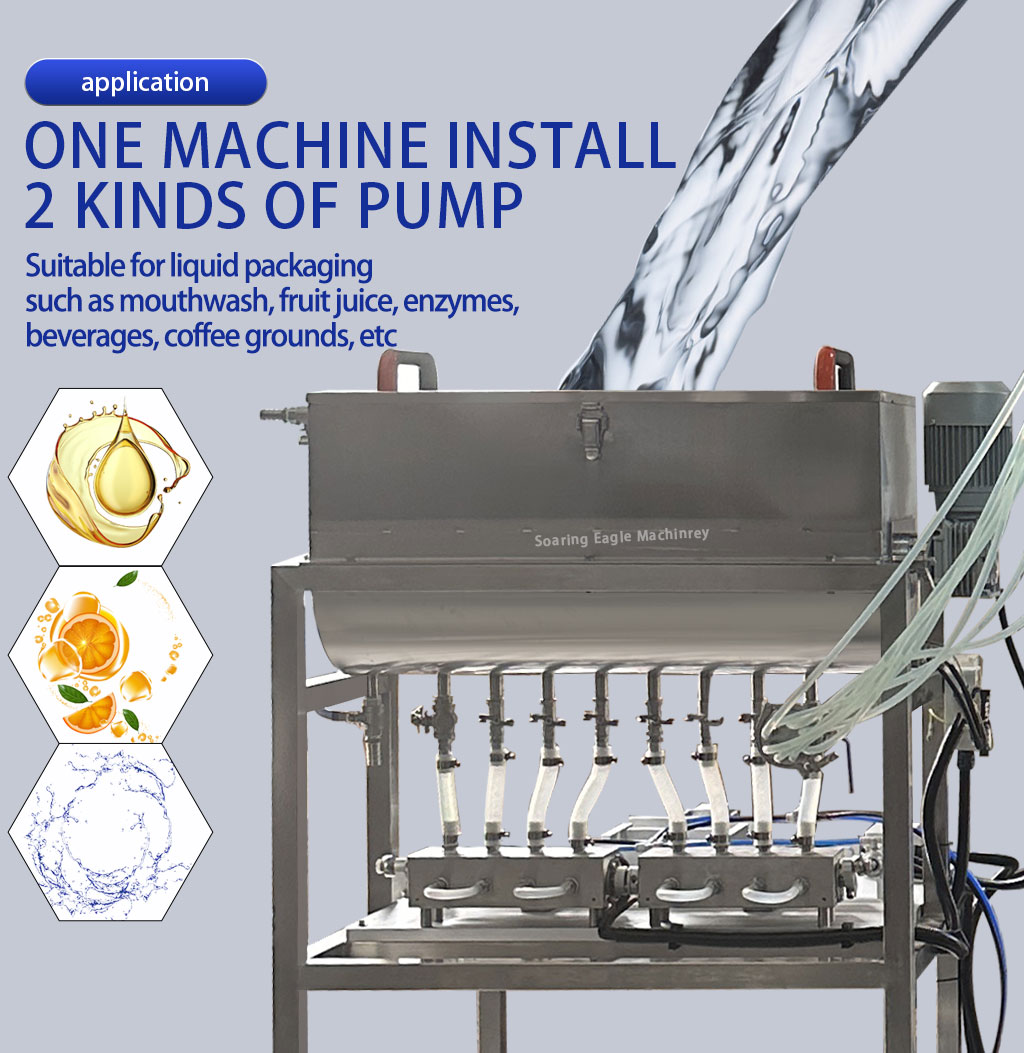

8. A hopper heating and stirring system, prevent solidification of materials, sediment.

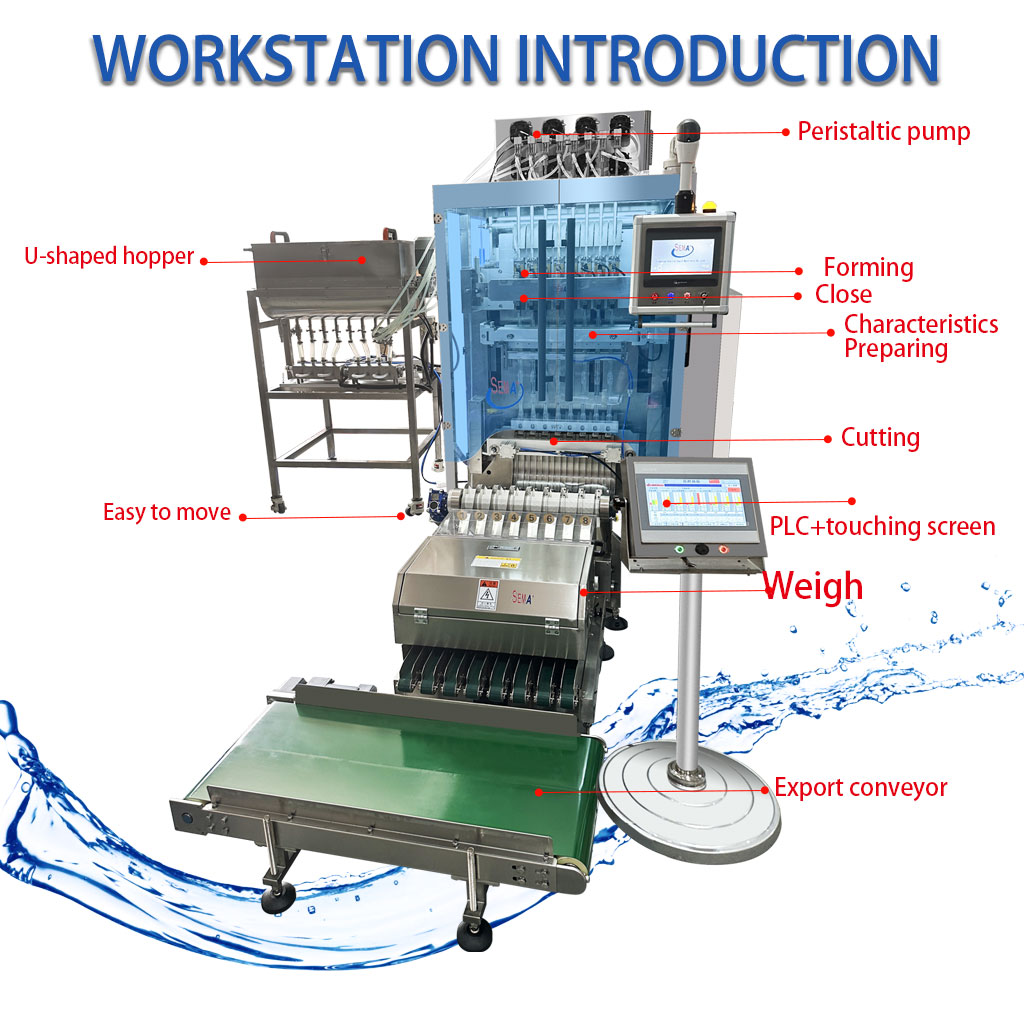

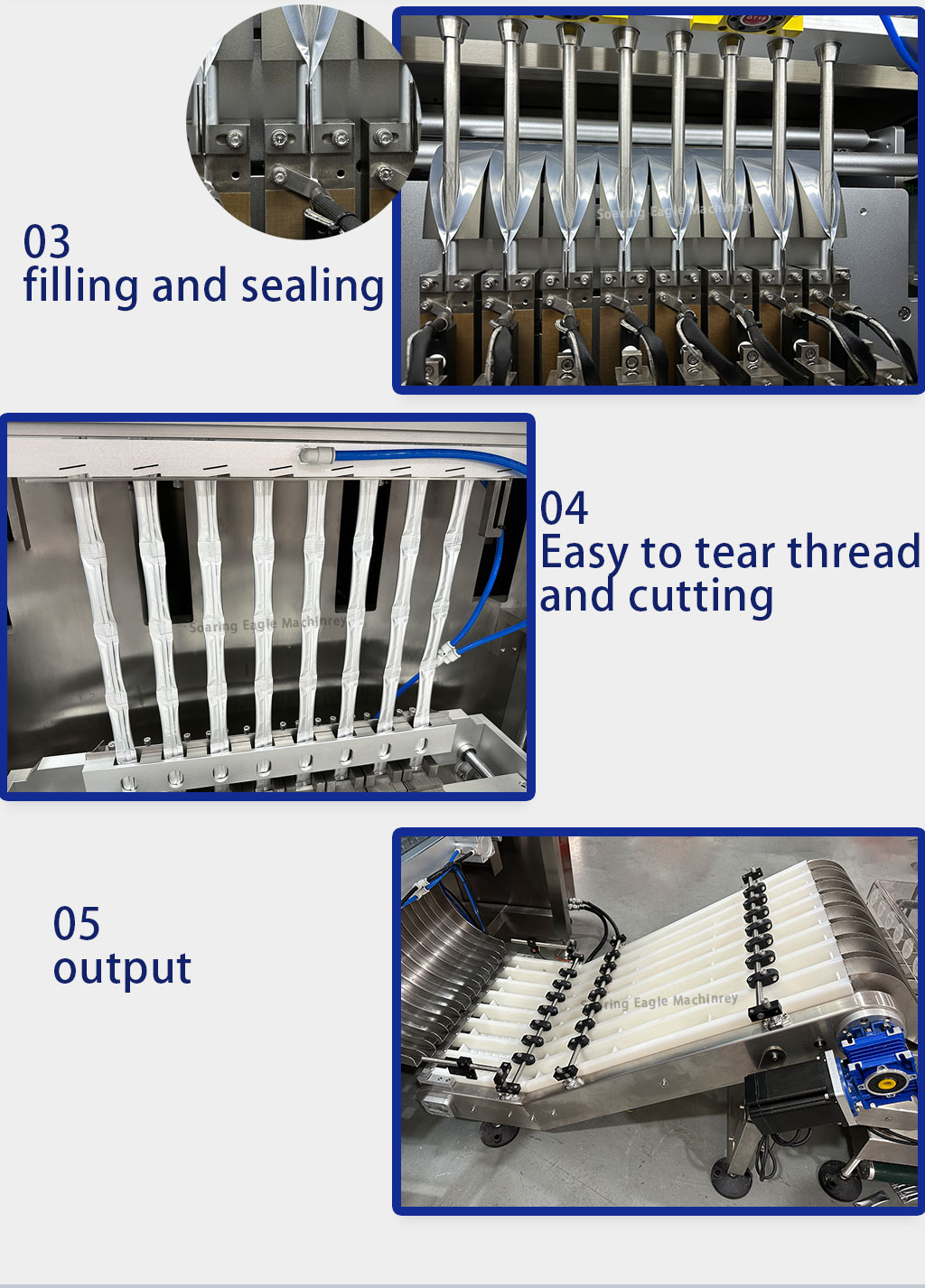

9. Automatic feeding, measuring, bag making, filling, sealing, finished product output.
10. Quiet working environment, noise.
Packaging machine packaging range：
Vinegar, purified water, Ketchup, honey, sauces,shampoo, butter and other liquid, paste, for 20 ML within the product.
